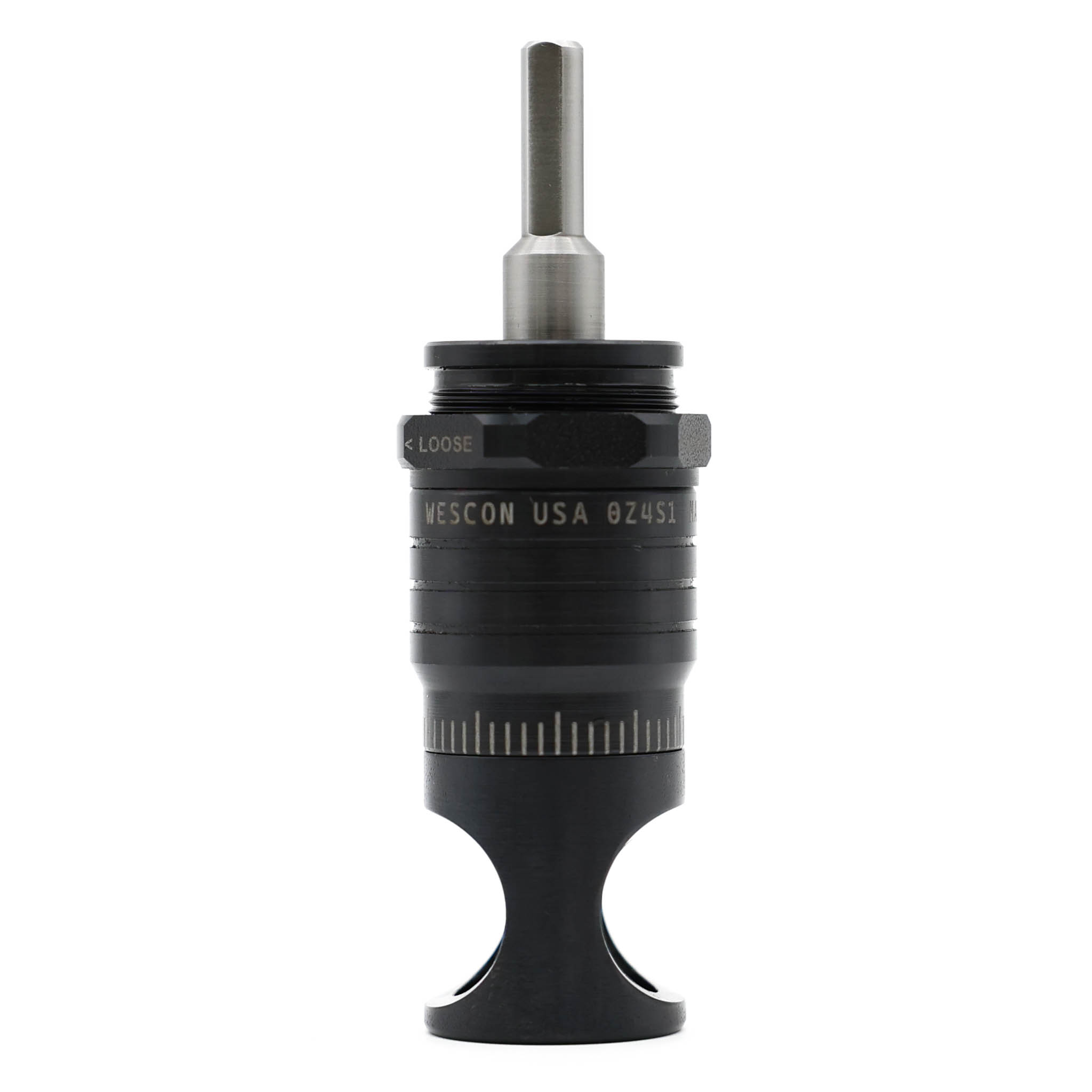

Wescon Model 596 Microstop - 3/4 in Cutter Capacity - Straight Skirt
HIGH SPEED HEAVY DUTY
Model NumberWES596-S-TF
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball Bearings
Heavy Duty Thrust Bearing
: Yes
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 0.300 in
Dust Seal
: Integrated Dust Seal
Cutter Thread
: 1/4-28
Shaft
: Tri-Flat
Shaft Diameter
: 1/4 in
Cutter Capacity
: 3/4 in
Skirt
: Straight
Skirt Description
: 1 in OD 3/4 in Cutter Capacity
Solid Stop
: Yes
Country of Origin
: USA
CONFIGURE
Your Selected Model: WES596-S-TF
Skirt Style: Straight (S)
S
Straight
S2L
2-Leg
S3L
3-Leg
F
Flange
B
Bell
I
Internal Thread
BI
Bell Internal Thread
E
External Thread
BE
Bell External Thread
SCA
Straight Cutaway
FCA
Flanged Cutaway
F2L
Flanged 2-Leg
S-875
Straight 0.875 in OD
Shaft Style: (TF)
STANDARD
TF
QC
