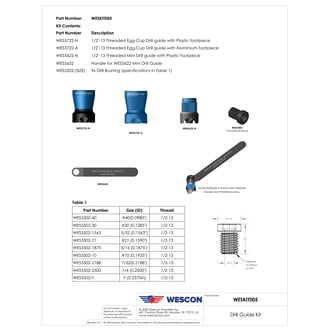

Drill Guide and Drill Bushing Assembly Kit
KIT COMPONENTS
This kit includes the following components:
Product
Quantity
WES5722-N
Wescon WES5722 Threaded Egg Cup Drill Guide - Heavy Duty Plastic Foot
Qty
1
WES5722-N
Wescon WES5722 Threaded Egg Cup Drill Guide - Heavy Duty Plastic Foot
WES5722-A
Wescon WES5722 Threaded Egg Cup Drill Guide - Aluminum Foot
Qty
1
WES5722-A
Wescon WES5722 Threaded Egg Cup Drill Guide - Aluminum Foot
WES5622-N
Wescon WES5622 Threaded Type Mini Drill Guide - Heavy Duty Plastic Foot
Qty
1
WES5622-N
Wescon WES5622 Threaded Type Mini Drill Guide - Heavy Duty Plastic Foot
WES5632
Wescon Model WES5632 Drill Guide Handle
Qty
1
WES5632
Wescon Model WES5632 Drill Guide Handle
WES5502-40
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size #40 (0.0980in)
Qty
1
WES5502-40
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size #40 (0.0980in)
WES5502-30
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size #30 (0.1285in)
Qty
1WES5502-30
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size #30 (0.1285in)
WES5502-1563
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size 5/32 (0.1563in)
Qty
1WES5502-1563
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size 5/32 (0.1563in)
WES5502-21
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size #21 (0.1590in)
Qty
1WES5502-21
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size #21 (0.1590in)
WES5502-1875
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size 3/16 (0.1875in)
Qty
1WES5502-1875
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size 3/16 (0.1875in)
WES5502-10
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size #10 (0.1935in)
Qty
1WES5502-10
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size #10 (0.1935in)
WES5502-2188
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size 7/32 (0.2188in)
Qty
1WES5502-2188
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size 7/32 (0.2188in)
WES5502-2500
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size 1/4 (0.2500in)
Qty
1WES5502-2500
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size 1/4 (0.2500in)
WES5502-F
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size F (0.2570in)
Qty
1WES5502-F
Wescon 5502 Drill Bushing - 1/2-13 Thread - Size F (0.2570in)
PRODUCT DETAILS
Optimize your hole preparation workflow with the WESKIT005 Threaded Drill Guide and Bushing Kit. This 13-piece assembly is specifically designed for aerospace technicians who require a hand-held drill guide that ensures 90-degree accuracy on flat and contoured surfaces. By utilizing a 1/2"-13 threaded interface, the kit provides a secure, zero-play connection between the housing and the hardened steel bushings.
Complete Range: Includes 9 precision-ground bushings, from #40 (.0980”) for pilot holes to Size F (.2570”) for final sizing.
Surface-Specific Protection: Swap between plastic footpiece drill guides for composite panels and anodized aluminum footpiece drill guide for heavy-duty airframe structures.
Wescon Durability: 100% manufactured in the USA from aircraft-grade materials to withstand the rigors of high-volume production lines.
