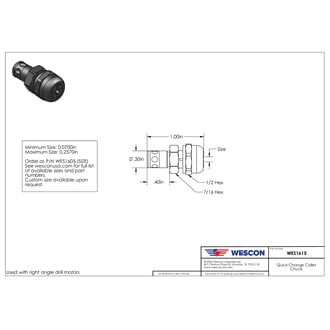

Wescon 1615 Short Quick Change Drill Collet - Size F (0.2570in)
Product details
WES1615 collets are the short quick change series. They fit the Wescon WES1760 short quick change chuck, which mounts on a 1/4-28 threaded angle drill or pancake drill attachment, for right angle drilling where a full length collet would not clear. Each collet takes a standard straight shank drill and drops into the chuck without tools.
Eight sizes from #50 (0.070 in) to F (0.257 in), including #40, #30, #20, #10, 3/16 in and 1/4 in. Keep one loaded per drill size and change bits in seconds. Custom sizes are available as an option on the product page. Made in USA.
Select Size
Need a Custom Size? Custom Sizes Available
We offer custom sizes to meet your exact specifications. Non-stock sizes require a $75 setup fee.
| Part Number | Size | Drill Size | Lead Time |
|---|---|---|---|
| 0.0700" | #50 | Ships in 2 Weeks | |
| 0.0980" | #40 | Ships in 2 Weeks | |
| 0.1285" | #30 | Ships in 2 Weeks | |
| 0.1610" | #20 | Ships in 2 Weeks | |
| 0.1875" | 3/16 | Ships in 2 Weeks | |
| 0.1935" | #10 | Ships in 2 Weeks | |
| 0.2500" | 1/4 | Ships in 2 Weeks | |
| 0.2570" | F | Ships in 2 Weeks |
NOTES FROM OUR ENGINEERING TEAM
Downloads
Also referred to as
- 1615-F
Variants: WES1615 chucks
Wescon WES1615 threaded drill chucks. Short quick change drill collets for the WES1760 short quick change chuck on 1/4-28 threaded angle drills and pancake drill attachments. Standard shank drill bits from #50 (0.070 in) to F (0.257 in). 8 stock sizes, custom sizes on request. Made in USA. Browse the WES1615 series
| Part Number | Lead Time | Size | Thread Size | Cap Type | Mount Type |
|---|---|---|---|---|---|
| WES1615-10 | Ships in 2 Weeks | #10 (0.1935in) | Quick Change | ||
| WES1615-1875 | Ships in 2 Weeks | 3/16 (0.1875in) | Quick Change | ||
| WES1615-20 | Ships in 2 Weeks | #20 (0.1610in) | Quick Change | ||
| WES1615-2500 | Ships in 2 Weeks | 1/4 (0.2500in) | Quick Change | ||
| WES1615-30 | Ships in 2 Weeks | #30 (0.1285in) | Quick Change | ||
| WES1615-40 | Ships in 2 Weeks | #40 (0.0980in) | Quick Change | ||
| WES1615-50 | Ships in 2 Weeks | #50 (0.0700in) | Quick Change | ||
| WES1615-F | Ships in 2 Weeks | F (0.2570in) | Quick Change |
