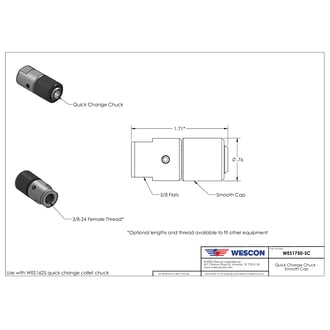

Wescon 1750 Quick Change Drill Chuck - Smooth Cap
PRODUCT DETAILS
The WES1750 quick change chuck mounts on a drill motor spindle with a 3/8-24 or 1/2-20 female thread and takes WES1625 quick change collets. A drill loaded in a collet goes in and out of the chuck without a chuck key, so changing from drill to reamer to countersink is a pull and a push.
Ridged or smooth cap, in a standard or extended length body. Quick change is the standard system on many Boeing programs, and Wescon microstops and other 1/4-28 tooling are offered with a matching QC shaft. Made in USA.
CONFIGURE
Cap: SC (Smooth Cap)
STANDARD
Ridged Cap
EXL
Extended Length
SC
Smooth Cap
The WES1750 quick change chuck mounts on a drill motor spindle with a 3/8-24 or 1/2-20 female thread and takes WES1625 quick change collets. A drill loaded in a collet goes in and out of the chuck without a chuck key, so changing from drill to reamer to countersink is a pull and a push.
Ridged or smooth cap, in a standard or extended length body. Quick change is the standard system on many Boeing programs, and Wescon microstops and other 1/4-28 tooling are offered with a matching QC shaft. Made in USA.
NOTES FROM OUR ENGINEERING TEAM
Downloads
Also Referred to as
- 1750-SC
VARIANTS - WES1750 Chucks
Wescon WES1750 threaded drill chucks. Standard series quick change drill chuck, 3/8-24 or 1/2-20 female thread, fits most drill motors. Takes WES1625 quick change collets for fast bit changes. Ridged or smooth cap, standard or extended length body. Made in USA. Browse the WES1750 series
| Part Number | Lead Time | Size | Thread Size | Cap Type | Mount Type |
|---|---|---|---|---|---|
| WES1750 | Ships in 2 Weeks | 3/8-24 | Ridged Cap | Female Thread | |
| WES1750-EXL | Ships Next Business Day | 1/2-20 | Extended Length | Female Thread | |
| WES1750-SC | Ships Next Business Day | 3/8-24 | Smooth Cap | Female Thread |
