Slip Fit Bushing Kit, 12 Piece - Two Egg Cup Guides and Mini Drill Guide

9 hardened SF drill bushings, 1/2 in OD x 3/4 in, from #40 (0.098 in) to 1/4 in, with anodized aluminum egg cup guides in aluminum and nylon foot plus a mini drill guide. Made in USA.

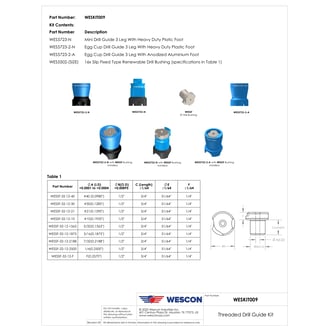

WESKIT009 Slip Fit Bushing Kit, 12 Piece - Two Egg Cup Guides and Mini Drill Guide
Part Number
WESKIT009

9 hardened SF drill bushings, 1/2 in OD x 3/4 in, from #40 (0.098 in) to 1/4 in, with anodized aluminum egg cup guides in aluminum and nylon foot plus a mini drill guide. Made in USA.

Price$318.50
|
StockShips in 3 Days
Login to access real-time inventory.
YOUR BUILD
WESKIT009
$318.50
Stock: Ships in 3 Days

Product details

The WESKIT009 Slip/Fixed Renewable (SF) Drill Guide Kit is engineered for high-volume airframe production, providing assembly lines with complete modularity for any hole preparation scenario. Centered around a trio of specialized SF drill guides - including our standard Mini-Guide & Egg-Cup with nylon footpiece, and a Egg-Cup with a anodized aluminum footpiece - this kit allows operators to instantly adapt to varying clearances and aircraft skin materials.

By featuring two distinct footpiece materials, production engineers can perfectly match the tool to the exact application. Use WES5723-2-N (or) WES5723-N with heavy duty plastic footpiece to guarantee zero surface scoring on delicate clad aluminum and composite panels, or transition to the WES5723-2-A with aluminum footpiece for high-heat cycles or heavy-duty metallic structures where maximum stability is required. To complete the setup, the kit includes a 9-piece set of precision SF drill bushings (1/2" OD x 3/4" Length), designed for rapid, friction-fit swaps during complex drilling sequences.

Maximum Clearance Versatility: Rapidly switch between standard Egg-Cup profiles and the low-profile Mini-Guide to access restricted airframe sections.
Surface-Specific Interface: Choose between non-marring Nylon or durable Anodized Aluminum footpieces to protect expensive composite and aluminum panels.
Wescon Durability: 100% manufactured in the USA from aircraft-grade materials with heat-treated steel bushings to withstand continuous assembly line use.
