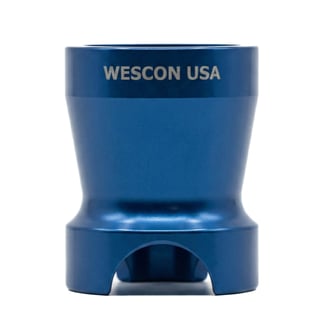

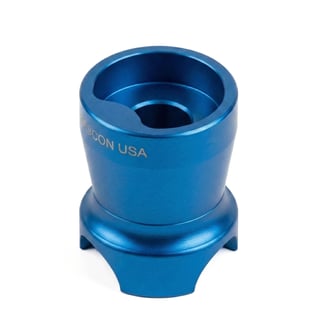

Wescon WES5723‑2 Egg Cup Style Drill Guide - 3-Leg Anodized Aluminum

Part Number
WES5723-2-A
Drill Bushing Size
1/2" OD x 3/4" Len.
Height
1.50"
Foot Style
3-Leg Anodized Aluminum
Diameter
1.20"
Drill Bushing Type
SF Drill Bushing
Material
Anodized Aluminum
Country of Origin
USA
Price$46.00
|
StockShips Next Business Day
Login to access real-time inventory.
YOUR BUILD
WES5723-2-A
$46.00
Stock: Ships Next Business Day

Product details

Portable handheld egg cup bushing holder for accurate drilling on flat or curved surfaces. Every Wescon drill cup body is anodized aluminum for durability and long wear, so don't settle for plastic alternatives. Foot piece options include aluminum for wear resistance or heavy duty plastic to protect the work surface from scratches.

Configure

Your Selected Model:  WES5723-2-A

Size Options: 1/2" OD x 3/4" Len.

1/2" OD x 3/4" Len.

STANDARD

1/2" OD x 3/4" Len.

5/16" OD x 3/4" Len.

1

5/16" OD x 3/4" Len.

1/2" OD x 3/4" Len.

2

1/2" OD x 3/4" Len.

1/2" OD x 1" Len.

2.5

1/2" OD x 1" Len.

3/4" OD x 1" Len.

3

3/4" OD x 1" Len.

Foot Options: 3-Leg Anodized Aluminum

3-Leg Anodized Aluminum

A

3-Leg Anodized Aluminum

3-Leg Heavy Duty Plastic

N

3-Leg Heavy Duty Plastic

NOTES FROM OUR ENGINEERING TEAM

Downloads

Download Datasheet PDF

Also referred to as

  • 5723-2-A
  • Drill guide 5723-2-A

Variants: WES5723

Part NumberLead TimeBushing TypeDrill Bushing SizeHeight
WES5723-1-AShips in 3 DaysSF Drill Bushing5/16" OD x 3/4" Len.1.40"
WES5723-1-NShips Next Business DaySF Drill Bushing5/16" OD x 3/4" Len.1.40"
WES5723-2.5-AShips in 6 WeeksSF Drill Bushing1/2" OD x 1" Len.2.00"
WES5723-2.5-NShips Next Business DaySF Drill Bushing1/2" OD x 1" Len.2.00"
WES5723-2-AShips Next Business DaySF Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-2LAShips Next Business DaySF Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-2LNShips in 3 DaysSF Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-2-NShips Next Business DaySF Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-3-AShips in 10 WeeksSF Drill Bushing3/4" OD x 1" Len.2.00"
WES5723-3-NShips in 10 WeeksSF Drill Bushing3/4" OD x 1" Len.2.00"
WES5723-AShips in 3 DaysSF Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-NShips Next Business DaySF Drill Bushing1/2" OD x 3/4" Len.1.50"
