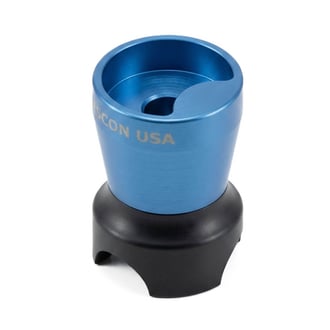

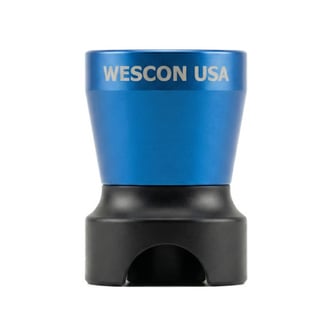

Wescon WES5723-1 Egg Cup Style Drill Guide - 3-Leg Heavy Duty Plastic

Part NumberWES5723-1-N
Drill Bushing Size
5/16" OD x 3/4" Len.
Height
1.40"
Foot Style
3-Leg Heavy Duty Plastic
Diameter
1.00"
Drill Bushing Type
SR Drill Bushing
Material
Anodized Aluminum
Country of Origin
USA
Stock
:
Ships in 6 Weeks

Login to access real-time inventory.
Price: $44.00
YOUR BUILD
WES5723-1-N
$44.00
Stock: Ships in 6 Weeks

PRODUCT DETAILS

Portable handheld drill cup to enable accurate drilling in flat or curved surfaces. Choose our anodized aluminum drill cups for superior durability and performance; don't settle for plastic alternatives. Foot piece options include aluminum for maximum wear resistance or heavy duty plastic to protect the work surface from scratches.

CONFIGURE

Your Selected Model:  WES5723-1-N

Size Options: 5/16" OD x 3/4" Len.

1/2" OD x 3/4" Len.

STANDARD

1/2" OD x 3/4" Len.

5/16" OD x 3/4" Len.

1

5/16" OD x 3/4" Len.

1/2" OD x 3/4" Len.

2

1/2" OD x 3/4" Len.

1/2" OD x 1" Len.

2.5

1/2" OD x 1" Len.

3/4" OD x 1" Len.

3

3/4" OD x 1" Len.

Foot Options: 3-Leg Heavy Duty Plastic

3-Leg Anodized Aluminum

A

3-Leg Anodized Aluminum

3-Leg Heavy Duty Plastic

N

3-Leg Heavy Duty Plastic

2-Leg Anodized Aluminum

2LA

2-Leg Anodized Aluminum

2-Leg Heavy Duty Plastic

2LN

2-Leg Heavy Duty Plastic

Downloads

Download Datasheet PDF

Also Referred to as

  • 5723-1-N
  • Drill guide 5723-1-N

VARIANTS - WES5723

Part NumberLead TimeBushing TypeDrill Bushing SizeHeight
WES5723-1-AShips in 6 WeeksSR Drill Bushing5/16" OD x 3/4" Len.1.40"
WES5723-1-NShips in 6 WeeksSR Drill Bushing5/16" OD x 3/4" Len.1.40"
WES5723-2.5-AShips in 6 WeeksSR Drill Bushing1/2" OD x 1" Len.2.00"
WES5723-2.5-NShips in 6 WeeksSR Drill Bushing1/2" OD x 1" Len.2.00"
WES5723-2-AShips in 6 WeeksSR Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-2LAShips in 6 WeeksSR Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-2LNShips in 6 WeeksSR Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-2-NShips in 6 WeeksSR Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-3-AShips in 6 WeeksSR Drill Bushing3/4" OD x 1" Len.2.00"
WES5723-3-NShips in 6 WeeksSR Drill Bushing3/4" OD x 1" Len.2.00"
WES5723-AShips in 6 WeeksSR Drill Bushing1/2" OD x 3/4" Len.1.50"
WES5723-NShips in 6 WeeksSR Drill Bushing1/2" OD x 3/4" Len.1.50"
