Wescon Model 696 Metric Microstop - 32 mm Cutter Capacity - External Thread Skirt - Nylon Foot
LARGE CAPACITY UNITS FOR ALUMINUM & COMPOSITES WITH METRIC SHAFT THREADS
Model NumberWES696-10-1250-EN
Measurement Type
: Metric
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball-Bearings
Heavy Duty Thrust Bearing
: Yes
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 1/2 in
Dust Seal
: Integrated Dust Seal
Cutter Thread
: M10x1
Shaft
: Tri-Flat
Shaft Diameter
: 3/8 in
Shaft Thread
: M10x1 Cutter Thread
Cutter Capacity
: 32 mm
Skirt
: External Thread
Foot
: Nylon
Solid Stop
: Yes
Country of Origin
: USA

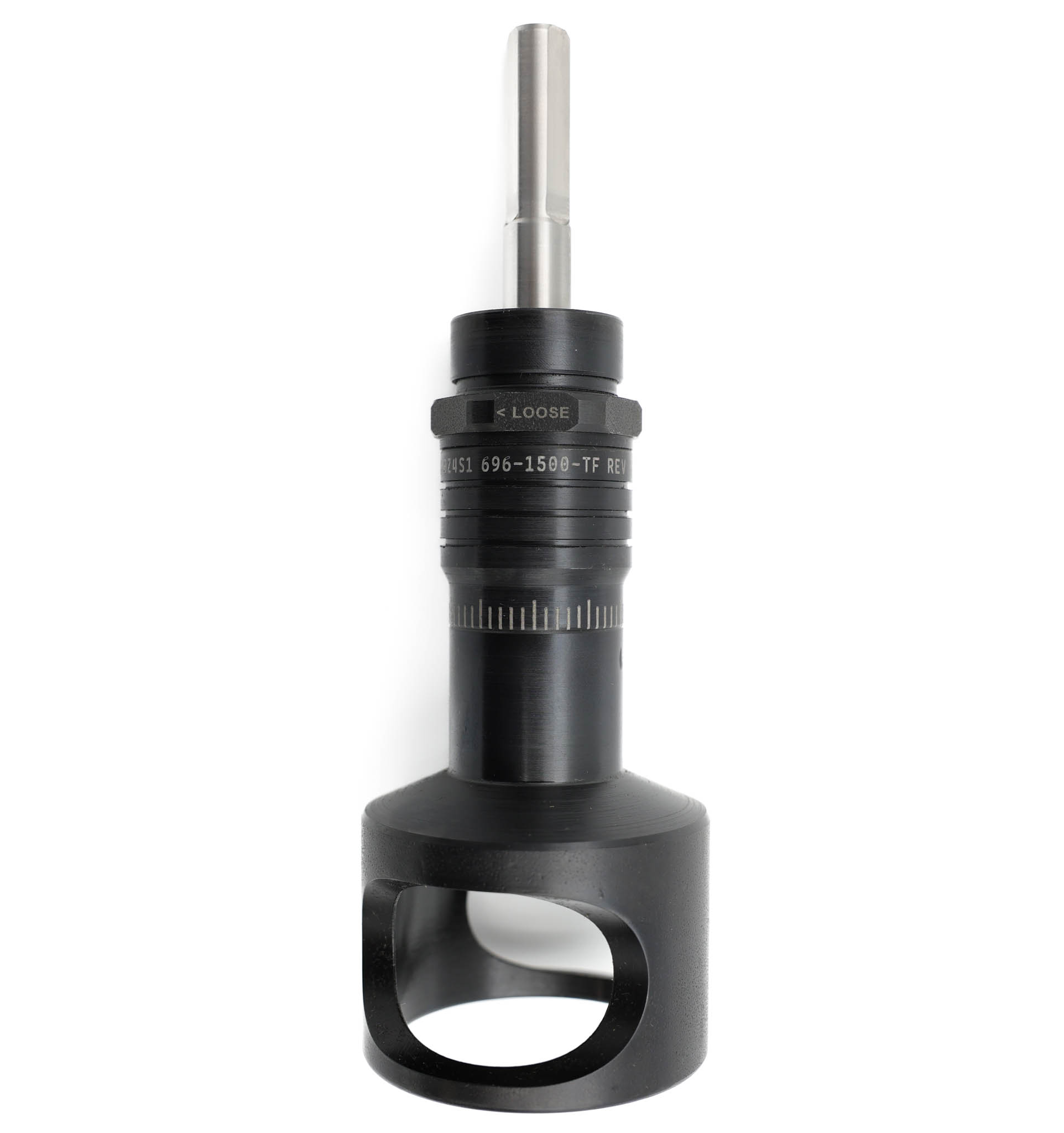

* The image represents the general look of the series. Actual product may vary based on options selected.
CONFIGURE
Your Selected Model: WES696-10-1250-EN
Model Options: (1250)
875
1000
1250
1375
1500
Skirt Style: External Thread (E)
STANDARD
Straight
E
External Thread
Foot Style: Nylon (N)
N
Nylon
S
Steel
Shaft Thread: (10)
8
10
