In high-tolerance aerospace assembly, the microstop countersink cage is the primary tool for maintaining depth repeatability. However, the mechanical accuracy of the spindle is only one part of the equation. The foot piece serves as the critical interface between the tool and the aircraft skin. Selecting the correct material is essential to prevent surface marring, manage thermal degradation, and ensure tool longevity.
We manufacture our precision tooling in-house, providing three specialized foot piece materials to meet specific airframe requirements. These are identified in our part number configurations by the codes N, S, and P, and are designed to be user-interchangeable for maximum versatility on the shop floor.
1. Nylon Foot Pieces (Code: N)
Nylon is a lightweight synthetic material characterized by its low coefficient of friction and flexibility.
- Characteristics: Surface hardness lower than most aerospace alloys; non-abrasive.
- Advantages: Provides a "no-mar" contact patch that prevents circular scoring or "halos" on finished surfaces. It acts as a protective buffer between the tool and the workpiece.
2. Polished Steel Foot Pieces (Code: S)
Polished steel is the standard for heavy-duty industrial applications where tool endurance is the priority.
- Characteristics: High surface hardness, exceptional structural rigidity, and excellent thermal conductivity.
- Advantages: Offers maximum wear resistance. It is designed to withstand high-friction use without the physical degradation or deformation seen in synthetic materials.
3. Phenolic Foot Pieces (Code: P)
Phenolic—also known by trade names such as Bakelite or Celeron—is a high-pressure thermoset laminate engineered for the most demanding environments.
- Characteristics: Exceptional thermal stability and robust chemical resistance. It is inherently resistant to common industrial solvents, fuels, and oils.
- Advantages: Unlike standard nylon, which can soften, melt, or swell when exposed to high temperatures or chemicals, phenolic remains structurally stable. It is the ideal choice for high-speed, high-cycle operations where the work surface is subject to friction-induced heat or chemical exposure.
The In-House Manufacturing Advantage
Every foot piece in our catalog is machined to complement our 0.0005” adjustment precision. By managing design and production entirely in-house, we ensure that every N, S, and P foot piece is perfectly compatible with its respective microstop series. We also offer specialized configurations like Vacuum Adapter foot pieces that allow for active chip extraction, keeping the work area clear and further reducing the risk of surface damage.
Material Selection Reference
| Code | Material | Surface Protection | Durability | Heat & Chemical Resistance |
|---|---|---|---|---|
| N | Nylon | Highest (Non-Marring) | Medium | Moderate |
| S | Polished Steel | Moderate | Extreme | High |
| P | Phenolic | High | High | Excellent |

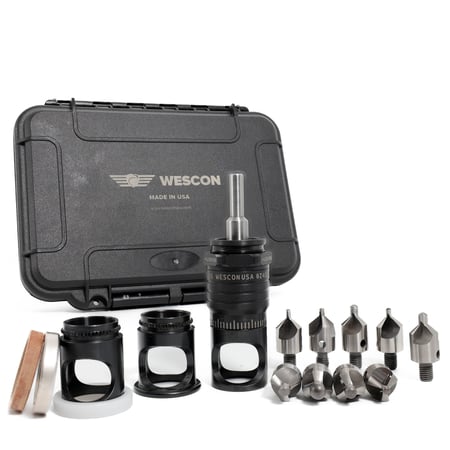

Complete Versatility: The WESKIT004 Heavy-Duty Kit
For operations that handle a variety of materials and surface requirements, we offer comprehensive kits like the WESKIT004. This heavy-duty microstop and countersink kit is engineered to give operators total control over their assembly process by including all three interchangeable foot pieces in one package.
The WESKIT004 includes:
- WES596 Heavy-Duty Cage: A high-capacity microstop for standard airframe assembly.
- Interchangeable Skirts: Includes straight, flanged, and threaded options to suit different clearance needs.
- Three Foot Pieces (N, S, and P): Includes the Nylon, Polished Steel, and Phenolic foot pieces so users can adapt the tool themselves as the work surface changes.
- Precision Cutters: Nine HSS piloted cutters for a complete out-of-the-box solution.
