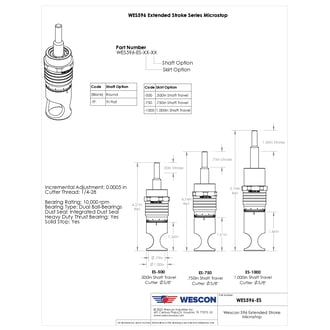

Wescon 596-ES Extended Stroke Microstop - 1/4-28 - 5/8" Cutter Capacity - Straight Skirt
EXTENDED STROKE UNITS FOR DRILL / COUNTERSINK AND SPECIAL LENGTH CUTTERS
Item 1 of 2
Item 1 of 2
Part NumberWES596-ES-1000
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball-Bearings
Heavy Duty Thrust Bearing
: Yes
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 1.00 in
Dust Seal
: Integrated Dust Seal
Cutter Thread
: 1/4-28
Shaft
: Round
Shaft Diameter
: 1/4 in
Cutter Capacity
: 5/8 in
Skirt
: Straight
Solid Stop
: Yes
Material
: Steel
Country of Origin
: USA
* The image represents the general look of the series. Actual product may vary based on options selected.
Stock
:
Ships in 2 Weeks
Login to access real-time inventory.
Price: $190.00
YOUR BUILD
WES596-ES-1000
$190.00
Stock: Ships in 2 Weeks
CONFIGURE
Your Selected Model: WES596-ES-1000
Model Options: 1.000 in Shaft Travel (ES-1000)
ES-500
0.500 in Shaft Travel
ES-750
0.750 in Shaft Travel
ES-1000
1.000 in Shaft Travel
Downloads
Also Referred to as
- 596-ES-1000
- Micro-stop 596-ES-1000
- Regulador Micrometrico 596-ES-1000
- Butee Micrometrique
- Micro-Stops de avellanado
- Countersink cage 596-ES-1000
- Micro stop drill cage 596-ES-1000
- Long travel microstop
- Long stroke microstop countersink cage
VARIANTS - WES596-ES Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Lead Time | Shaft Travel |
|---|---|---|---|---|---|
| WES596-ES-1000 | 1/4-28 | 5/8 in | Round | Ships in 2 Weeks | |
| WES596-ES-500 | 1/4-28 | 5/8 in | Round | Ships in 2 Weeks | |
| WES596-ES-750 | 1/4-28 | 5/8 in | Round | Ships in 2 Weeks |
