Wescon Model 596-ES Extended Stroke Microstop - 5/8 in Cutter Capacity - Straight Skirt
EXTENDED STROKE UNITS FOR DRILL / COUNTERSINK AND SPECIAL LENGTH CUTTERS
Part NumberWES596-ES-500
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball-Bearings
Heavy Duty Thrust Bearing
: Yes
Incremental Adjustment
: 0.0005 in
Shaft Travel
: .500 in
Dust Seal
: Integrated Dust Seal
Cutter Thread
: 1/4-28
Shaft
: Standard
Shaft Diameter
: 1/4 in
Cutter Capacity
: 5/8 in
Skirt
: Straight
Solid Stop
: Yes
Country of Origin
: USA

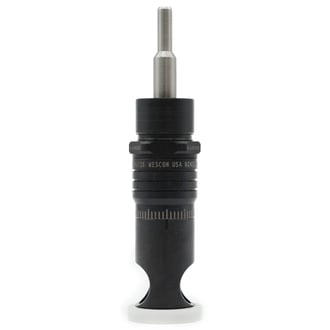

* The image represents the general look of the series. Actual product may vary based on options selected.
CONFIGURE
Your Selected Model: WES596-ES-500
Model Options: 0.500 in Shaft Travel (ES-500)
ES-500
0.500 in Shaft Travel
ES-750
0.750 in Shaft Travel
ES-1000
1.000 in Shaft Travel
VARIANTS - WES596-ES Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Shaft Travel |
|---|---|---|---|---|
| WES596-ES-500 | 1/4-28 | 5/8 in | Standard | .500 in |
| WES596-ES-750 | 1/4-28 | 5/8 in | Standard | .750 in |
| WES596-ES-1000 | 1/4-28 | 5/8 in | Standard | 1.00 in |
