Wescon 596-EXA Extended Adjustment Microstop - 1/4-28 - 3/4" Cutter Capacity - Flanged Skirt
Extended skirt adjustment of .750 in for variable length cutters.
Item 1 of 3
Item 1 of 3
Part NumberWES596-EXA-F-QC
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball Bearings
Heavy Duty Thrust Bearing
: Yes
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 0.300 in
Dust Seal
: Integrated Dust Seal
Cutter Thread
: 1/4-28
Shaft
: Quick Change
Shaft Diameter
: 1/4 in
Cutter Capacity
: 3/4 in
Skirt
: Flanged
Skirt Description
: 1-3/16 in OD 3/4 in Cutter Capacity
Solid Stop
: Yes
Material
: Steel
Country of Origin
: USA
* The image represents the general look of the series. Actual product may vary based on options selected.
Stock
:
Ships in 2 Weeks
Login to access real-time inventory.
Price: $110.00
YOUR BUILD
WES596-EXA-F-QC
$110.00
Stock: Ships in 2 Weeks
PRODUCT DETAILS

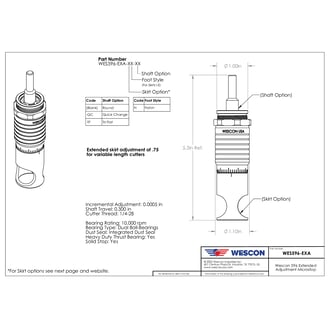

The Wescon 596-EXA Extended Adjustment Series Microstop features an extended skirt adjustment of .750 inches, making it ideal for applications requiring variable length cutters. This versatile design allows you to easily go from a Countersink Cutter, to the use of a Threaded Shank Drill or Reamer, Drill-Countersink, and even a short Spot-Facing Cutter, along with most everything in between.

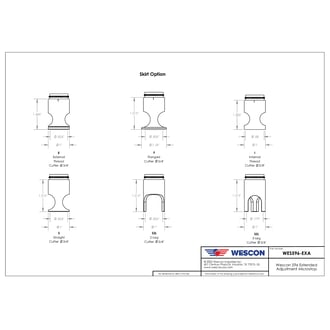

CONFIGURE
Your Selected Model: WES596-EXA-F-QC
Skirt Style: Flanged (F)
S
Straight
S2L
2-Leg
S3L
3-Leg
F
Flanged
I
Internal Thread
E
External Thread
S-875
Straight 0.875 in OD
F-1125
Flanged 1.125 in OD
Foot Style (Available only for Skirts: I, E)
N
Nylon
Shaft Style: Quick Change (QC)
STANDARD
Round
TF
Tri-Flat
QC
Quick Change
Downloads
Also Referred to as
- 596-EXA-F-QC
- Micro-stop 596-EXA-F-QC
- Regulador Micrometrico 596-EXA-F-QC
- Butee Micrometrique
- Micro-Stops de avellanado
- Countersink cage 596-EXA-F-QC
- Micro stop drill cage 596-EXA-F-QC
VARIANTS - WES596-EXA Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot | Lead Time |
|---|---|---|---|---|---|---|
| WES596-EXA-EN | 1/4-28 | 3/4 in | Round | External Thread | Nylon | Ships in 2 Weeks |
| WES596-EXA-EN-QC | 1/4-28 | 3/4 in | Quick Change | External Thread | Nylon | Ships in 2 Weeks |
| WES596-EXA-EN-TF | 1/4-28 | 3/4 in | Tri-Flat | External Thread | Nylon | Ships in 2 Weeks |
| WES596-EXA-F | 1/4-28 | 3/4 in | Round | Flanged | Ships in 2 Weeks | |
| WES596-EXA-F-1125 | 1/4-28 | 3/4 in | Round | Flanged 1.125 in OD | Ships in 2 Weeks | |
| WES596-EXA-F-1125-QC | 1/4-28 | 3/4 in | Quick Change | Flanged 1.125 in OD | Ships in 2 Weeks | |
| WES596-EXA-F-1125-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged 1.125 in OD | Ships in 2 Weeks | |
| WES596-EXA-F-QC | 1/4-28 | 3/4 in | Quick Change | Flanged | Ships in 2 Weeks | |
| WES596-EXA-F-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged | Ships in 2 Weeks | |
| WES596-EXA-IN | 1/4-28 | 5/8 in | Round | Internal Thread | Nylon | Ships in 2 Weeks |
| WES596-EXA-IN-QC | 1/4-28 | 5/8 in | Quick Change | Internal Thread | Nylon | Ships in 2 Weeks |
| WES596-EXA-IN-TF | 1/4-28 | 5/8 in | Tri-Flat | Internal Thread | Nylon | Ships in 2 Weeks |
| WES596-EXA-S | 1/4-28 | 3/4 in | Round | Straight | Ships in 2 Weeks | |
| WES596-EXA-S2L | 1/4-28 | 3/4 in | Round | 2-Leg | Ships in 2 Weeks | |
| WES596-EXA-S2L-QC | 1/4-28 | 3/4 in | Quick Change | 2-Leg | Ships in 2 Weeks | |
| WES596-EXA-S2L-TF | 1/4-28 | 3/4 in | Tri-Flat | 2-Leg | Ships in 2 Weeks | |
| WES596-EXA-S3L | 1/4-28 | 3/4 in | Round | 3-Leg | Ships in 2 Weeks | |
| WES596-EXA-S3L-QC | 1/4-28 | 3/4 in | Quick Change | 3-Leg | Ships in 2 Weeks | |
| WES596-EXA-S3L-TF | 1/4-28 | 3/4 in | Tri-Flat | 3-Leg | Ships in 2 Weeks | |
| WES596-EXA-S-875 | 1/4-28 | 5/8 in | Round | Straight 0.875 in OD | Ships Next Business Day | |
| WES596-EXA-S-875-QC | 1/4-28 | 5/8 in | Quick Change | Straight 0.875 in OD | Ships in 2 Weeks | |
| WES596-EXA-S-875-TF | 1/4-28 | 5/8 in | Tri-Flat | Straight 0.875 in OD | Ships in 2 Weeks | |
| WES596-EXA-S-QC | 1/4-28 | 3/4 in | Quick Change | Straight | Ships in 2 Weeks | |
| WES596-EXA-S-TF | 1/4-28 | 3/4 in | Tri-Flat | Straight | Ships in 2 Weeks |
