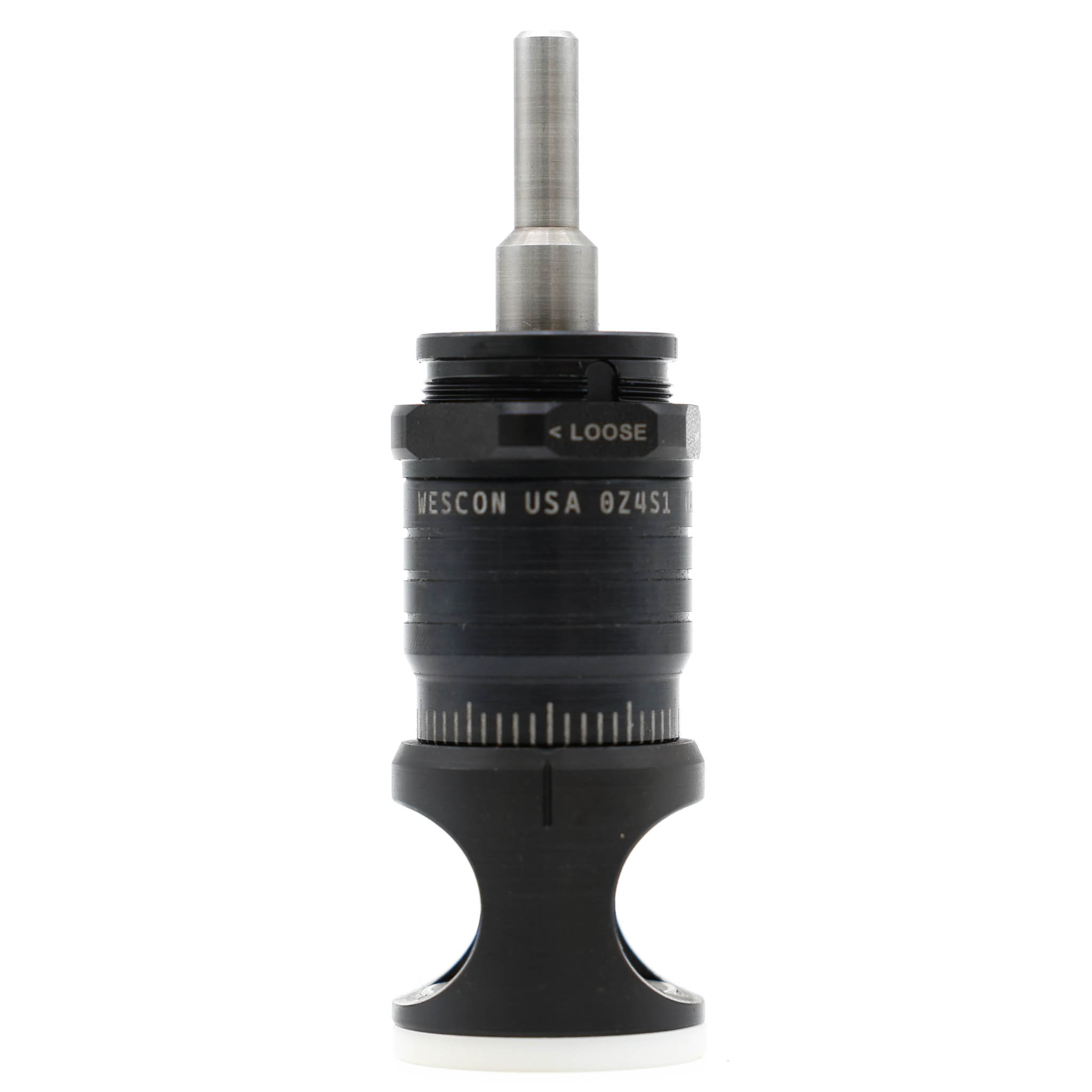

Wescon 596 Microstop - 1/4-28 - 3/4" Cutter Capacity - Bell Internal Thread Skirt - Nylon Foot
HIGH SPEED HEAVY DUTY
Part NumberWES596-BIN
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball Bearings
Heavy Duty Thrust Bearing
: Yes
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 0.300 in
Dust Seal
: Integrated Dust Seal
Cutter Thread
: 1/4-28
Shaft
: Standard
Shaft Diameter
: 1/4 in
Cutter Capacity
: 3/4 in
Skirt
: Bell Internal Thread
Skirt Description
: 1-3/16 in OD 3/4 in Cutter Capacity
Foot
: Nylon
Solid Stop
: Yes
Country of Origin
: USA
CONFIGURE
Your Selected Model: WES596-BIN
Skirt Style: Bell Internal Thread (BI)
S
Straight
S2L
2-Leg
S3L
3-Leg
F
Flanged
FH
Flanged High
B
Bell
SI
Slotted Internal Thread
I
Internal Thread
BI
Bell Internal Thread
SBI
Slotted Bell Internal Thread
E
External Thread
BE
Bell External Thread
SCA
Straight Cutaway
FCA
Flanged Cutaway
F2L
Flanged 2-Leg
S-875
Straight 0.875 in OD
Foot Style: Nylon (N)
N
Nylon
S
Steel
P
Phenolic
Shaft Style: Round (STANDARD)
STANDARD
Round
TF
Tri-Flat
QC
Quick Change
TSL
Threaded Shank Long (1/4-28)
VARIANTS - WES596 Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot |
|---|---|---|---|---|---|
| WES596-SCA | 1/4-28 | 3/4 in | Standard | Straight Cutaway | |
| WES596-ES-TF | 1/4-28 | 3/4 in | Tri-Flat | External Thread | Steel |
| WES596-BIS-QC | 1/4-28 | 3/4 in | Quick Change | Bell Internal Thread | Steel |
| WES596-BES-QC | 1/4-28 | 7/8 in | Quick Change | Bell External Thread | Steel |
| WES596-BIN-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Internal Thread | Nylon |
| WES596-ES-QC | 1/4-28 | 3/4 in | Quick Change | External Thread | Steel |
| WES596-IS-TF | 1/4-28 | 5/8 in | Tri-Flat | Internal Thread | Steel |
| WES596-IS-QC | 1/4-28 | 5/8 in | Quick Change | Internal Thread | Steel |
| WES596-IP | 1/4-28 | 5/8 in | Standard | Internal Thread | Phenolic |
| WES596-IP-TF | 1/4-28 | 5/8 in | Tri-Flat | Internal Thread | Phenolic |
| WES596-BIN-QC | 1/4-28 | 3/4 in | Quick Change | Bell Internal Thread | Nylon |
| WES596-BES-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell External Thread | Steel |
| WES596-BES | 1/4-28 | 7/8 in | Standard | Bell External Thread | Steel |
| WES596-IS | 1/4-28 | 5/8 in | Standard | Internal Thread | Steel |
| WES596-FH | 1/4-28 | 3/4 in | Standard | Flanged High | |
| WES596-BIP | 1/4-28 | 3/4 in | Standard | Bell Internal Thread | Phenolic |
| WES596-BIP-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Internal Thread | Phenolic |
| WES596-S-TF | 1/4-28 | 3/4 in | Tri-Flat | Straight | |
| WES596-BIP-QC | 1/4-28 | 3/4 in | Quick Change | Bell Internal Thread | Phenolic |
| WES596-S2L-TF | 1/4-28 | 3/4 in | Tri-Flat | 2-Leg | |
| WES596-S | 1/4-28 | 3/4 in | Standard | Straight | |
| WES596-BEP-QC | 1/4-28 | 7/8 in | Quick Change | Bell External Thread | Phenolic |
| WES596-S2L-QC | 1/4-28 | 3/4 in | Quick Change | 2-Leg | |
| WES596-S3L | 1/4-28 | 3/4 in | Standard | 3-Leg | |
| WES596-S3L-TF | 1/4-28 | 3/4 in | Tri-Flat | 3-Leg | |
| WES596-SCA-TF | 1/4-28 | 3/4 in | Tri-Flat | Straight Cutaway | |
| WES596-S2L | 1/4-28 | 3/4 in | Standard | 2-Leg | |
| WES596-B-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell | |
| WES596-SCA-QC | 1/4-28 | 3/4 in | Quick Change | Straight Cutaway | |
| WES596-B | 1/4-28 | 7/8 in | Standard | Bell | |
| WES596-F-QC | 1/4-28 | 3/4 in | Quick Change | Flanged | |
| WES596-SIS | 1/4-28 | 5/8 in | Standard | Slotted Internal Thread | Steel |
| WES596-F2L-QC | 1/4-28 | 3/4 in | Quick Change | Flanged 2-Leg | |
| WES596-BEP | 1/4-28 | 7/8 in | Standard | Bell External Thread | Phenolic |
| WES596-FH-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged High | |
| WES596-FH-QC | 1/4-28 | 3/4 in | Quick Change | Flanged High | |
| WES596-BEN-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell External Thread | Nylon |
| WES596-IN-QC | 1/4-28 | 5/8 in | Quick Change | Internal Thread | Nylon |
| WES596-EN-QC | 1/4-28 | 3/4 in | Quick Change | External Thread | Nylon |
| WES596-IN | 1/4-28 | 5/8 in | Standard | Internal Thread | Nylon |
| WES596-EN | 1/4-28 | 3/4 in | Standard | External Thread | Nylon |
| WES596-BIS-TF | 1/4-28 | 3/4 in | Tri-Flat | Bell Internal Thread | Steel |
| WES596-S3L-QC | 1/4-28 | 3/4 in | Quick Change | 3-Leg | |
| WES596-EP-TF | 1/4-28 | 3/4 in | Tri-Flat | External Thread | Phenolic |
| WES596-EP | 1/4-28 | 3/4 in | Standard | External Thread | Phenolic |
| WES596-F2L | 1/4-28 | 3/4 in | Standard | Flanged 2-Leg | |
| WES596-FCA-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged Cutaway | |
| WES596-F | 1/4-28 | 3/4 in | Standard | Flanged | |
| WES596-FCA | 1/4-28 | 3/4 in | Standard | Flanged Cutaway | |
| WES596-F2L-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged 2-Leg | |
| WES596-FCA-QC | 1/4-28 | 3/4 in | Quick Change | Flanged Cutaway | |
| WES596-SIN | 1/4-28 | 5/8 in | Standard | Slotted Internal Thread | Nylon |
| WES596-SIN-QC | 1/4-28 | 5/8 in | Quick Change | Slotted Internal Thread | Nylon |
| WES596-SBIN-QC | 1/4-28 | 3/4 in | Quick Change | Slotted Bell Internal Thread | Nylon |
| WES596-SBIS | 1/4-28 | 3/4 in | Standard | Slotted Bell Internal Thread | Steel |
| WES596-SBIS-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted Bell Internal Thread | Steel |
| WES596-SIS-TF | 1/4-28 | 5/8 in | Tri-Flat | Slotted Internal Thread | Steel |
| WES596-SIS-QC | 1/4-28 | 5/8 in | Quick Change | Slotted Internal Thread | Steel |
| WES596-SIP | 1/4-28 | 5/8 in | Standard | Slotted Internal Thread | Phenolic |
| WES596-SIP-TF | 1/4-28 | 5/8 in | Tri-Flat | Slotted Internal Thread | Phenolic |
| WES596-SIP-QC | 1/4-28 | 5/8 in | Quick Change | Slotted Internal Thread | Phenolic |
| WES596-SBIS-QC | 1/4-28 | 3/4 in | Quick Change | Slotted Bell Internal Thread | Steel |
| WES596-SBIP | 1/4-28 | 3/4 in | Standard | Slotted Bell Internal Thread | Phenolic |
| WES596-SBIN | 1/4-28 | 3/4 in | Standard | Slotted Bell Internal Thread | Nylon |
| WES596-SBIN-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted Bell Internal Thread | Nylon |
| WES596-SIN-TF | 1/4-28 | 5/8 in | Tri-Flat | Slotted Internal Thread | Nylon |
| WES596-IN-TF | 1/4-28 | 5/8 in | Tri-Flat | Internal Thread | Nylon |
| WES596-SBIP-TF | 1/4-28 | 3/4 in | Tri-Flat | Slotted Bell Internal Thread | Phenolic |
| WES596-EN-TF | 1/4-28 | 3/4 in | Tri-Flat | External Thread | Nylon |
| WES596-SBIP-QC | 1/4-28 | 3/4 in | Quick Change | Slotted Bell Internal Thread | Phenolic |
| WES596-BIS | 1/4-28 | 3/4 in | Standard | Bell Internal Thread | Steel |
| WES596-IP-QC | 1/4-28 | 5/8 in | Quick Change | Internal Thread | Phenolic |
| WES596-S-875-TF | 1/4-28 | 5/8 in | Tri-Flat | Straight 0.875 in OD | |
| WES596-BEP-TF | 1/4-28 | 7/8 in | Tri-Flat | Bell External Thread | Phenolic |
| WES596-S-QC | 1/4-28 | 3/4 in | Quick Change | Straight | |
| WES596-ES | 1/4-28 | 3/4 in | Standard | External Thread | Steel |
| WES596-B-QC | 1/4-28 | 7/8 in | Quick Change | Bell | |
| WES596-S-875 | 1/4-28 | 5/8 in | Standard | Straight 0.875 in OD | |
| WES596-S-875-QC | 1/4-28 | 5/8 in | Quick Change | Straight 0.875 in OD | |
| WES596-BEN-QC | 1/4-28 | 7/8 in | Quick Change | Bell External Thread | Nylon |
| WES596-EP-QC | 1/4-28 | 3/4 in | Quick Change | External Thread | Phenolic |
| WES596-F-TF | 1/4-28 | 3/4 in | Tri-Flat | Flanged | |
| WES596-BEN | 1/4-28 | 7/8 in | Standard | Bell External Thread | Nylon |
| WES596-BIN | 1/4-28 | 3/4 in | Standard | Bell Internal Thread | Nylon |
| WES596-SBIN-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted Bell Internal Thread | Nylon |
| WES596-EN-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | External Thread | Nylon |
| WES596-ES-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | External Thread | Steel |
| WES596-BEN-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell External Thread | Nylon |
| WES596-IN-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Internal Thread | Nylon |
| WES596-IS-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Internal Thread | Steel |
| WES596-SIN-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Slotted Internal Thread | Nylon |
| WES596-SIS-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Slotted Internal Thread | Steel |
| WES596-BES-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell External Thread | Steel |
| WES596-BIN-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Internal Thread | Nylon |
| WES596-SBIS-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted Bell Internal Thread | Steel |
| WES596-BIS-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Internal Thread | Steel |
| WES596-BEP-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell External Thread | Phenolic |
| WES596-EP-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | External Thread | Phenolic |
| WES596-IP-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Internal Thread | Phenolic |
| WES596-S-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Straight | |
| WES596-S2L-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | 2-Leg | |
| WES596-SBIP-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Slotted Bell Internal Thread | Phenolic |
| WES596-SIP-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Slotted Internal Thread | Phenolic |
| WES596-BIP-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Bell Internal Thread | Phenolic |
| WES596-F-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged | |
| WES596-S3L-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | 3-Leg | |
| WES596-SCA-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Straight Cutaway | |
| WES596-B-TSL | 1/4-28 | 7/8 in | Threaded Shank Long (1/4-28) | Bell | |
| WES596-F2L-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged 2-Leg | |
| WES596-FCA-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged Cutaway | |
| WES596-S-875-TSL | 1/4-28 | 5/8 in | Threaded Shank Long (1/4-28) | Straight 0.875 in OD | |
| WES596-FH-TSL | 1/4-28 | 3/4 in | Threaded Shank Long (1/4-28) | Flanged High |
