Wescon 396 Microstop - M6x1 - 11 mm Cutter Capacity - Slotted Internal Thread Skirt - Nylon Foot
SMALL CAPACITY / TIGHT SPACE APPLICATIONS
Part NumberWES396-6-SIN-QC
Measurement Type
: Metric
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball Bearings
Heavy Duty Thrust Bearing
: No
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 1/8 in
Cutter Thread
: M6x1
Shaft
: Quick Change
Shaft Diameter
: 1/4 in
Cutter Capacity
: 11 mm
Skirt
: Slotted Internal Thread
Skirt Description
: 11 mm Cutter Capacity
Foot
: Nylon
Solid Stop
: Yes
Material
: Steel
Country of Origin
: USA

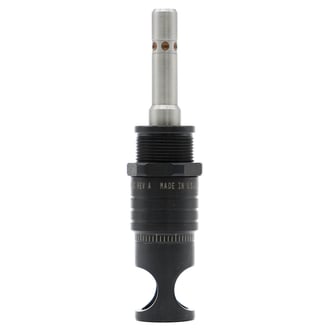

* The image represents the general look of the series. Actual product may vary based on options selected.
Stock
:
Ships in 2 Weeks
Price: $105.00
YOUR BUILD
WES396-6-SIN-QC
$105.00
Stock: Ships in 2 Weeks
CONFIGURE
Your Selected Model: WES396-6-SIN-QC
Skirt Style: Slotted Internal Thread (SI)
S
Straight
SL
Slotted
I
Internal Thread
SI
Slotted Internal Thread
E
External Thread
SE
Slotted External Thread
SCA
Straight Cutaway
S3L
3-Leg
Foot Style: Nylon (N)
N
Nylon
Shaft Style: Quick Change (QC)
STANDARD
Round
TS
Threaded Shank (1/4-28)
TF
Tri-Flat
QC
Quick Change
Shaft Thread: M6x1 (6)
STANDARD
1/4-28
6
M6x1
Also Referred to as
- 396-6-SIN-QC
- Micro-stop 396-6-SIN-QC
- Regulador Micrometrico 396-6-SIN-QC
- Butee Micrometrique
- Micro-Stops de avellanado
- Countersink cage 396-6-SIN-QC
- Micro stop drill cage 396-6-SIN-QC
- 396-6-IN-EA-QC
VARIANTS - WES396 Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot |
|---|---|---|---|---|---|
| WES396-6-IN-TF | M6x1 | 11 mm | Tri-Flat | Internal Thread | Nylon |
| WES396-S | 1/4-28 | 1/2 in | Round | Straight | |
| WES396-S-TF | 1/4-28 | 1/2 in | Tri-Flat | Straight | |
| WES396-EN-TF | 1/4-28 | 1/2 in | Tri-Flat | External Thread | Nylon |
| WES396-EN | 1/4-28 | 1/2 in | Round | External Thread | Nylon |
| WES396-S3L-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | 3-Leg | |
| WES396-S3L-TF | 1/4-28 | 1/2 in | Tri-Flat | 3-Leg | |
| WES396-S3L-QC | 1/4-28 | 1/2 in | Quick Change | 3-Leg | |
| WES396-6-IN-QC | M6x1 | 11 mm | Quick Change | Internal Thread | Nylon |
| WES396-6-S-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | Straight | |
| WES396-6-S-TF | M6x1 | 12 mm | Tri-Flat | Straight | |
| WES396-S-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Straight | |
| WES396-IN-TS | 1/4-28 | 7/16 in | Threaded Shank (1/4-28) | Internal Thread | Nylon |
| WES396-6-S-QC | M6x1 | 12 mm | Quick Change | Straight | |
| WES396-6-SCA-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | Straight Cutaway | |
| WES396-6-SCA-TF | M6x1 | 12 mm | Tri-Flat | Straight Cutaway | |
| WES396-6-SCA-QC | M6x1 | 12 mm | Quick Change | Straight Cutaway | |
| WES396-6-EN-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | External Thread | Nylon |
| WES396-6-S3L-TF | M6x1 | 12 mm | Tri-Flat | 3-Leg | |
| WES396-6-S3L | M6x1 | 12 mm | Round | 3-Leg | |
| WES396-SIN-TF | 1/4-28 | 7/16 in | Tri-Flat | Slotted Internal Thread | Nylon |
| WES396-6-SL | M6x1 | 12 mm | Round | Slotted | |
| WES396-SL-QC | 1/4-28 | 1/2 in | Quick Change | Slotted | |
| WES396-IN-TF | 1/4-28 | 7/16 in | Tri-Flat | Internal Thread | Nylon |
| WES396-SL | 1/4-28 | 1/2 in | Round | Slotted | |
| WES396-6-SL-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | Slotted | |
| WES396-6-SL-TF | M6x1 | 12 mm | Tri-Flat | Slotted | |
| WES396-SIN-TS | 1/4-28 | 7/16 in | Threaded Shank (1/4-28) | Slotted Internal Thread | Nylon |
| WES396-SL-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Slotted | |
| WES396-6-SL-QC | M6x1 | 12 mm | Quick Change | Slotted | |
| WES396-SIN-QC | 1/4-28 | 7/16 in | Quick Change | Slotted Internal Thread | Nylon |
| WES396-6-SIN-TF | M6x1 | 11 mm | Tri-Flat | Slotted Internal Thread | Nylon |
| WES396-6-SIN-QC | M6x1 | 11 mm | Quick Change | Slotted Internal Thread | Nylon |
| WES396-EN-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | External Thread | Nylon |
| WES396-SCA-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Straight Cutaway | |
| WES396-SCA-QC | 1/4-28 | 1/2 in | Quick Change | Straight Cutaway | |
| WES396-6-IN | M6x1 | 11 mm | Round | Internal Thread | Nylon |
| WES396-6-IN-TS | M6x1 | 11 mm | Threaded Shank (1/4-28) | Internal Thread | Nylon |
| WES396-IN | 1/4-28 | 7/16 in | Round | Internal Thread | Nylon |
| WES396-6-EN | M6x1 | 12 mm | Round | External Thread | Nylon |
| WES396-6-EN-TF | M6x1 | 12 mm | Tri-Flat | External Thread | Nylon |
| WES396-6-EN-QC | M6x1 | 12 mm | Quick Change | External Thread | Nylon |
| WES396-6-SEN-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | Slotted External Thread | Nylon |
| WES396-6-SEN-QC | M6x1 | 12 mm | Quick Change | Slotted External Thread | Nylon |
| WES396-6-SEN | M6x1 | 12 mm | Round | Slotted External Thread | Nylon |
| WES396-SEN-QC | 1/4-28 | 1/2 in | Quick Change | Slotted External Thread | Nylon |
| WES396-6-SEN-TF | M6x1 | 12 mm | Tri-Flat | Slotted External Thread | Nylon |
| WES396-SEN | 1/4-28 | 1/2 in | Round | Slotted External Thread | Nylon |
| WES396-SEN-TF | 1/4-28 | 1/2 in | Tri-Flat | Slotted External Thread | Nylon |
| WES396-SEN-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Slotted External Thread | Nylon |
| WES396-SL-TF | 1/4-28 | 1/2 in | Tri-Flat | Slotted | |
| WES396-EN-QC | 1/4-28 | 1/2 in | Quick Change | External Thread | Nylon |
| WES396-S-QC | 1/4-28 | 1/2 in | Quick Change | Straight | |
| WES396-SIN | 1/4-28 | 7/16 in | Round | Slotted Internal Thread | Nylon |
| WES396-SCA | 1/4-28 | 1/2 in | Round | Straight Cutaway | |
| WES396-6-SIN-TS | M6x1 | 11 mm | Threaded Shank (1/4-28) | Slotted Internal Thread | Nylon |
| WES396-6-SIN | M6x1 | 11 mm | Round | Slotted Internal Thread | Nylon |
| WES396-SCA-TF | 1/4-28 | 1/2 in | Tri-Flat | Straight Cutaway | |
| WES396-S3L | 1/4-28 | 1/2 in | Round | 3-Leg | |
| WES396-6-SCA | M6x1 | 12 mm | Round | Straight Cutaway | |
| WES396-6-S3L-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | 3-Leg | |
| WES396-6-S3L-QC | M6x1 | 12 mm | Quick Change | 3-Leg | |
| WES396-6-S | M6x1 | 12 mm | Round | Straight | |
| WES396-IN-QC | 1/4-28 | 7/16 in | Quick Change | Internal Thread | Nylon |
