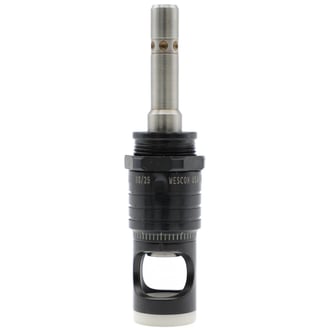

Wescon 396 Microstop - 1/4-28 - 7/16" Cutter Capacity - Internal Thread Skirt - Nylon Foot
SMALL CAPACITY / TIGHT SPACE APPLICATIONS
Item 1 of 4
Item 1 of 4
Part NumberWES396-IN-QC
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball Bearings
Heavy Duty Thrust Bearing
: No
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 1/8 in
Cutter Thread
: 1/4-28
Shaft
: Quick Change
Shaft Diameter
: 1/4 in
Cutter Capacity
: 7/16 in
Skirt
: Internal Thread
Skirt Description
: 7/16 in Cutter Capacity
Foot
: Nylon
Solid Stop
: Yes
Material
: Steel
Country of Origin
: USA
Stock
:
Ships Next Business Day
Login to access real-time inventory.
Price: $105.00
YOUR BUILD
WES396-IN-QC
$105.00
Stock: Ships Next Business Day
CONFIGURE
Your Selected Model: WES396-IN-QC
Skirt Style: Internal Thread (I)
S
Straight
SL
Slotted
I
Internal Thread
SI
Slotted Internal Thread
E
External Thread
SE
Slotted External Thread
SCA
Straight Cutaway
S3L
3-Leg
Foot Style: Nylon (N)
N
Nylon
Shaft Style: Quick Change (QC)
STANDARD
Round
TS
Threaded Shank (1/4-28)
TF
Tri-Flat
QC
Quick Change
Shaft Thread: 1/4-28 (STANDARD)
STANDARD
1/4-28
6
M6x1
Downloads
Also Referred to as
- 396-IN-QC
- Micro-stop 396-IN-QC
- Regulador Micrometrico 396-IN-QC
- Butee Micrometrique
- Micro-Stops de avellanado
- Countersink cage 396-IN-QC
- Micro stop drill cage 396-IN-QC
VARIANTS - WES396 Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot | Lead Time |
|---|---|---|---|---|---|---|
| WES396-EN | 1/4-28 | 1/2 in | Round | External Thread | Nylon | Ships Next Business Day |
| WES396-EN-QC | 1/4-28 | 1/2 in | Quick Change | External Thread | Nylon | Ships Next Business Day |
| WES396-EN-TF | 1/4-28 | 1/2 in | Tri-Flat | External Thread | Nylon | Ships in 2 Weeks |
| WES396-EN-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | External Thread | Nylon | Ships in 2 Weeks |
| WES396-IN | 1/4-28 | 7/16 in | Round | Internal Thread | Nylon | Ships Next Business Day |
| WES396-IN-QC | 1/4-28 | 7/16 in | Quick Change | Internal Thread | Nylon | Ships Next Business Day |
| WES396-IN-TF | 1/4-28 | 7/16 in | Tri-Flat | Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-IN-TS | 1/4-28 | 7/16 in | Threaded Shank (1/4-28) | Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-S | 1/4-28 | 1/2 in | Round | Straight | Ships Next Business Day | |
| WES396-S3L | 1/4-28 | 1/2 in | Round | 3-Leg | Ships Next Business Day | |
| WES396-S3L-QC | 1/4-28 | 1/2 in | Quick Change | 3-Leg | Ships Next Business Day | |
| WES396-S3L-TF | 1/4-28 | 1/2 in | Tri-Flat | 3-Leg | Ships in 2 Weeks | |
| WES396-S3L-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | 3-Leg | Ships in 2 Weeks | |
| WES396-SCA | 1/4-28 | 1/2 in | Round | Straight Cutaway | Ships Next Business Day | |
| WES396-SCA-QC | 1/4-28 | 1/2 in | Quick Change | Straight Cutaway | Ships Next Business Day | |
| WES396-SCA-TF | 1/4-28 | 1/2 in | Tri-Flat | Straight Cutaway | Ships in 2 Weeks | |
| WES396-SCA-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Straight Cutaway | Ships in 2 Weeks | |
| WES396-SEN | 1/4-28 | 1/2 in | Round | Slotted External Thread | Nylon | Ships in 2 Weeks |
| WES396-SEN-QC | 1/4-28 | 1/2 in | Quick Change | Slotted External Thread | Nylon | Ships in 2 Weeks |
| WES396-SEN-TF | 1/4-28 | 1/2 in | Tri-Flat | Slotted External Thread | Nylon | Ships in 2 Weeks |
| WES396-SEN-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Slotted External Thread | Nylon | Ships in 2 Weeks |
| WES396-SIN | 1/4-28 | 7/16 in | Round | Slotted Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-SIN-QC | 1/4-28 | 7/16 in | Quick Change | Slotted Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-SIN-TF | 1/4-28 | 7/16 in | Tri-Flat | Slotted Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-SIN-TS | 1/4-28 | 7/16 in | Threaded Shank (1/4-28) | Slotted Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-SL | 1/4-28 | 1/2 in | Round | Slotted | Ships in 2 Weeks | |
| WES396-SL-QC | 1/4-28 | 1/2 in | Quick Change | Slotted | Ships in 2 Weeks | |
| WES396-SL-TF | 1/4-28 | 1/2 in | Tri-Flat | Slotted | Ships in 2 Weeks | |
| WES396-SL-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Slotted | Ships in 2 Weeks | |
| WES396-S-QC | 1/4-28 | 1/2 in | Quick Change | Straight | Ships Next Business Day | |
| WES396-S-TF | 1/4-28 | 1/2 in | Tri-Flat | Straight | Ships in 2 Weeks | |
| WES396-S-TS | 1/4-28 | 1/2 in | Threaded Shank (1/4-28) | Straight | Ships Next Business Day | |
| WES396-6-EN | M6x1 | 12 mm | Round | External Thread | Nylon | Ships in 2 Weeks |
| WES396-6-EN-QC | M6x1 | 12 mm | Quick Change | External Thread | Nylon | Ships in 2 Weeks |
| WES396-6-EN-TF | M6x1 | 12 mm | Tri-Flat | External Thread | Nylon | Ships in 2 Weeks |
| WES396-6-EN-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | External Thread | Nylon | Ships in 2 Weeks |
| WES396-6-IN | M6x1 | 11 mm | Round | Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-6-IN-QC | M6x1 | 11 mm | Quick Change | Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-6-IN-TF | M6x1 | 11 mm | Tri-Flat | Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-6-IN-TS | M6x1 | 11 mm | Threaded Shank (1/4-28) | Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-6-S | M6x1 | 12 mm | Round | Straight | Ships in 2 Weeks | |
| WES396-6-S3L | M6x1 | 12 mm | Round | 3-Leg | Ships in 2 Weeks | |
| WES396-6-S3L-QC | M6x1 | 12 mm | Quick Change | 3-Leg | Ships in 2 Weeks | |
| WES396-6-S3L-TF | M6x1 | 12 mm | Tri-Flat | 3-Leg | Ships in 2 Weeks | |
| WES396-6-S3L-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | 3-Leg | Ships in 2 Weeks | |
| WES396-6-SCA | M6x1 | 12 mm | Round | Straight Cutaway | Ships in 2 Weeks | |
| WES396-6-SCA-QC | M6x1 | 12 mm | Quick Change | Straight Cutaway | Ships in 2 Weeks | |
| WES396-6-SCA-TF | M6x1 | 12 mm | Tri-Flat | Straight Cutaway | Ships in 2 Weeks | |
| WES396-6-SCA-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | Straight Cutaway | Ships in 2 Weeks | |
| WES396-6-SEN | M6x1 | 12 mm | Round | Slotted External Thread | Nylon | Ships in 2 Weeks |
| WES396-6-SEN-QC | M6x1 | 12 mm | Quick Change | Slotted External Thread | Nylon | Ships in 2 Weeks |
| WES396-6-SEN-TF | M6x1 | 12 mm | Tri-Flat | Slotted External Thread | Nylon | Ships in 2 Weeks |
| WES396-6-SEN-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | Slotted External Thread | Nylon | Ships in 2 Weeks |
| WES396-6-SIN | M6x1 | 11 mm | Round | Slotted Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-6-SIN-QC | M6x1 | 11 mm | Quick Change | Slotted Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-6-SIN-TF | M6x1 | 11 mm | Tri-Flat | Slotted Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-6-SIN-TS | M6x1 | 11 mm | Threaded Shank (1/4-28) | Slotted Internal Thread | Nylon | Ships in 2 Weeks |
| WES396-6-SL | M6x1 | 12 mm | Round | Slotted | Ships in 2 Weeks | |
| WES396-6-SL-QC | M6x1 | 12 mm | Quick Change | Slotted | Ships in 2 Weeks | |
| WES396-6-SL-TF | M6x1 | 12 mm | Tri-Flat | Slotted | Ships in 2 Weeks | |
| WES396-6-SL-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | Slotted | Ships in 2 Weeks | |
| WES396-6-S-QC | M6x1 | 12 mm | Quick Change | Straight | Ships in 2 Weeks | |
| WES396-6-S-TF | M6x1 | 12 mm | Tri-Flat | Straight | Ships in 2 Weeks | |
| WES396-6-S-TS | M6x1 | 12 mm | Threaded Shank (1/4-28) | Straight | Ships in 2 Weeks |
