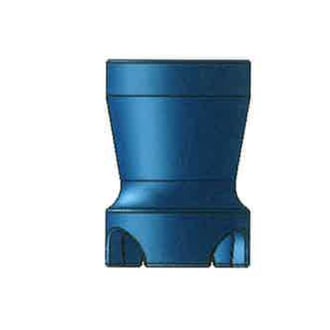

Wescon 5702-A Egg Cup Drill Guide

Use with WES5502 or any standard 1/2"-13 threaded drill bushing of maximum ID 0.3125".
(Replaced)
Part Number
WES5702-A
Drill Bushing Size
1/2"-13
Height
1-7/16"
Diameter
1.00"
Drill Bushing Type
Threaded Drill Bushing
Material
Anodized Aluminum
Country of Origin
USA

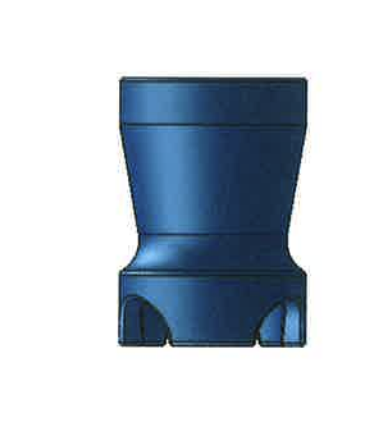

* The image represents the general look of the series. Actual product may vary based on options selected.
This product has been replaced

Part Number WES5702-A has been replaced by WES5722-A.

View Replacement Product

Product details

Portable hand held egg cup bushing holder for accurate drilling on flat or curved surfaces. Every Wescon drill cup body is anodized aluminum for durability and long wear, so don't settle for plastic alternatives.

NOTES FROM OUR ENGINEERING TEAM

Recommended for use with WES5502 or any standard 1/2"-13 threaded drill bushing (maximum ID 0.2570").

Wescon 5502 Threaded Drill Bushing - 1/2-13 OD Thread - Size #40 (0.0980in)

WES5502-40

Wescon 5502 Threaded Drill Bushing - 1/2-13 OD Thread - Size #40 (0.0980in)

Downloads

Download Datasheet PDF

Also referred to as

  • 5702-A
  • Drill guide 5702-A
  • Drill stand 5702-A
  • Drill cup 5702-A
  • Egg cup bushing holder 5702-A
  • Egg cup drill stand 5702-A
  • Drill bushing cup
  • Drill bushing holder

Variants: WES5700

Part NumberLead TimeBushing TypeDrill Bushing SizeHeight
WES5701-AShips Next Business DayThreaded Drill Bushing3/8"-161-7/16"
WES5702-A-Threaded Drill Bushing1/2"-131-7/16"
