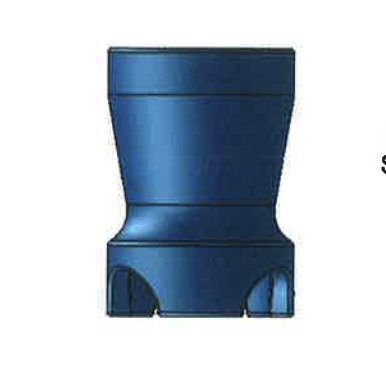

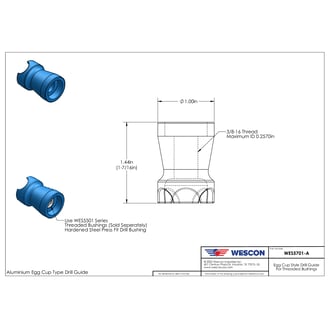

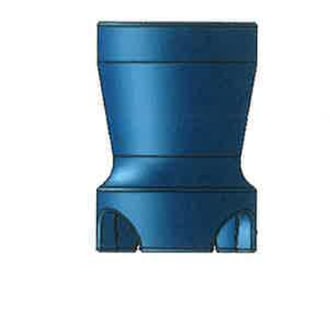

Wescon 5701-A Egg Cup Drill Guide

Use with WES5501 or any standard 3/8"-16 threaded drill bushing of maximum ID 0.2570".
Part Number
WES5701-A
Drill Bushing Size
3/8"-16
Height
1-7/16"
Diameter
1.00"
Drill Bushing Type
Threaded Drill Bushing
Material
Anodized Aluminum
Country of Origin
USA
* The image represents the general look of the series. Actual product may vary based on options selected.
Price$30.80
|
StockShips Next Business Day
Login to access real-time inventory.
YOUR BUILD
WES5701-A
$30.80
Stock: Ships Next Business Day

Product details

Portable hand held egg cup bushing holder for accurate drilling on flat or curved surfaces. Every Wescon drill cup body is anodized aluminum for durability and long wear, so don't settle for plastic alternatives.

NOTES FROM OUR ENGINEERING TEAM

Recommended for use with WES5501 or any standard 3/8"-16 threaded drill bushing (maximum ID 0.2570").

Wescon 5501 Threaded Drill Bushing - 3/8-16 OD Thread - Size #40 (0.0980in)

WES5501-40

Wescon 5501 Threaded Drill Bushing - 3/8-16 OD Thread - Size #40 (0.0980in)

Downloads

Download Datasheet PDF

Also referred to as

  • 5701-A
  • Drill guide 5701-A
  • Drill stand 5701-A
  • Drill cup 5701-A
  • Egg cup bushing holder 5701-A
  • Egg cup drill stand 5701-A
  • Drill bushing cup
  • Drill bushing holder

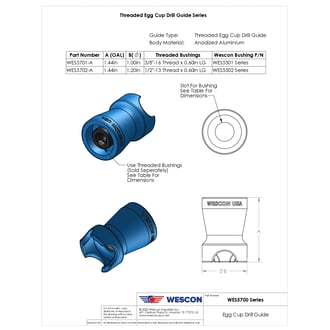

Variants: WES5700

Part NumberLead TimeBushing TypeDrill Bushing SizeHeight
WES5701-AShips Next Business DayThreaded Drill Bushing3/8"-161-7/16"
WES5702-A-Threaded Drill Bushing1/2"-131-7/16"
