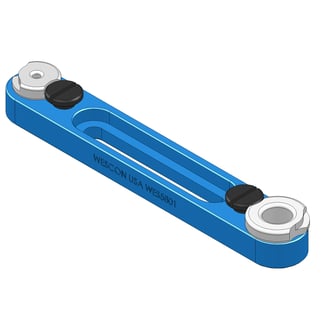

Wescon WES5801 Double Ended Drill Bar, SF Bushings - 1/2" and 3/4" Double Ended Bushing
Double ended adjustable drill bar, 1/2" and 3/4" OD SF slip/fixed renewable bushings.
Item 1 of 3
Item 1 of 3
Part NumberWES5801
Bushing Size
1/2" and 3/4" Double Ended
Bushing Type
SF Drill Bushing
Bushing Length
1/2 in
Country of Origin
USA
Price$44.00
|
Stock:Ships Next Business Day
Login to access real-time inventory.
YOUR BUILD
WES5801
$44.00
Stock: Ships Next Business Day
PRODUCT DETAILS
A double ended drill bar holds a bushing at each end so one tool covers two bushing sizes. The Wescon WES5801 holds a 1/2 inch OD SF bushing at one end and a 3/4 inch at the other, which covers both common bushing sizes without a second snatch block or steam boat.
Clamp through the slot, set the bushing over the hole, lock and drill. Fewer tool changes on the wing, one bar in the kit instead of two. Anodized aluminum, made in USA.
NOTES FROM OUR ENGINEERING TEAM
Downloads
Also Referred to as
- 5801
- Bushing holder drill bar 5801
- Drill bar 5801
- Snatch block bushing holder
- Steam boat bushing holder
VARIANTS - WES5801
Wescon WES5801 drill bars. Double ended adjustable drill bar, 1/2" and 3/4" OD SF slip/fixed renewable bushings. Made in USA.
| Part Number | Lead Time | Bushing Size | Bushing Type | Bushing Length |
|---|---|---|---|---|
| WES5800-1 | Ships Next Business Day | 1/2 in | SF Drill Bushing | 1/2 in |
| WES5800-2 | Ships Next Business Day | 3/4 in | SF Drill Bushing | 1/2 in |
| WES5801 | Ships Next Business Day | 1/2" and 3/4" Double Ended | SF Drill Bushing | 1/2 in |
| WES5802-1 | Ships Next Business Day | 1/2 in | SF Drill Bushing | 1/2 in |
| WES5802-2 | Ships Next Business Day | 3/4 in | SF Drill Bushing | 1/2 in |
| WES5803-1 | Ships Next Business Day | 1/2 in | SF Drill Bushing | 1/2 in |
| WES5803-2 | Ships Next Business Day | 3/4 in | SF Drill Bushing | 1/2 in |
