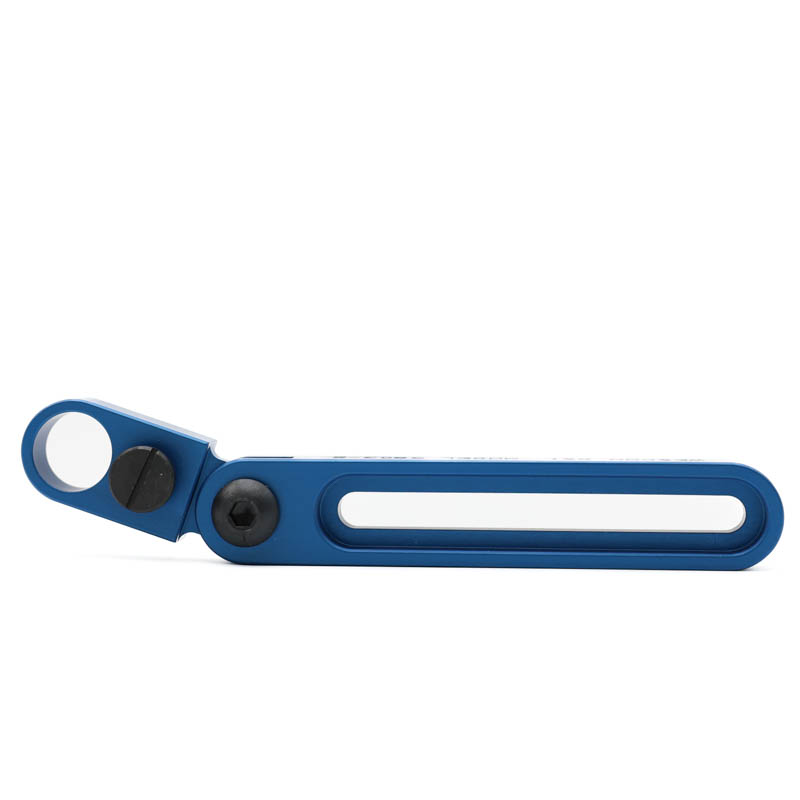

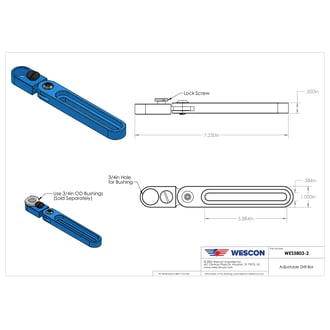

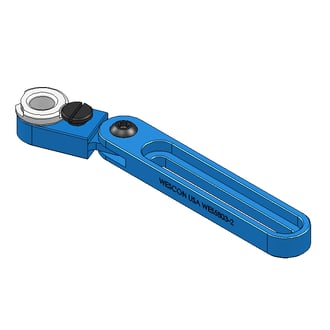

Wescon WES5803 SR Type Adjustable Drill Bar - 3/4 in Bushing

SR-type adjustable drill bars with swivel head (Left -right), for 3/4" O.D. slip/fix-type bushings.
Part NumberWES5803-2
Bushing Size
3/4 in
Bushing Type
SR/SF Drill Bushing
Bushing Length
1/2 in
Country of Origin
USA
Stock
:
Ships Next Business Day

Login to access real-time inventory.
Price: $45.00
YOUR BUILD
WES5803-2
$45.00
Stock: Ships Next Business Day

PRODUCT DETAILS

The WES5803 adds left-right swivel adjustability for offset drilling or angled surfaces. It securely holds ½″ and ¾″ bushings for precise guidance. This tight-tolerance adjustable drill bar, also called a “snatch block" or “steam boat", is made in the USA from anodized aluminum. Ideal for sheet metal repair, MRO work, or assembly jobs where accuracy is critical, even in tight spaces.

CONFIGURE

Your Selected Model:  WES5803-2

Bushing Size Options: 3/4 in

1

1/2 in

2

3/4 in

Also Referred to as

  • 5803-2
  • Bushing holder drill bar 5803-2
  • Drill bar 5803-2
  • Snatch block bushing holder
  • Steam boat bushing holder

VARIANTS - WES5803

Part NumberBushing SizeBushing TypeBushing LengthLead Time
WES5800-11/2 inSR/SF Drill Bushing1/2 inShips Next Business Day
WES5800-23/4 inSR/SF Drill Bushing1/2 inShips in 4 Weeks
WES58011/2" and 3/4" Double EndedSR/SF Drill Bushing1/2 inShips in 4 Weeks
WES5802-11/2 inSR/SF Drill Bushing1/2 inShips in 4 Weeks
WES5802-23/4 inSR/SF Drill Bushing1/2 inShips Next Business Day
WES5803-11/2 inSR/SF Drill Bushing1/2 inShips in 4 Weeks
WES5803-23/4 inSR/SF Drill Bushing1/2 inShips Next Business Day
