Wescon WES5900 Adjustable Drill Bar, Threaded Bushing - 1/2-13 Bushing
Adjustable drill bars for WES5502 series 1/2-13 threaded bushings.
Item 1 of 2
Item 1 of 2
Part NumberWES5900-2
Bushing Size
1/2-13
Bushing Type
Threaded
Bushing Length
0.80 in
Country of Origin
USA

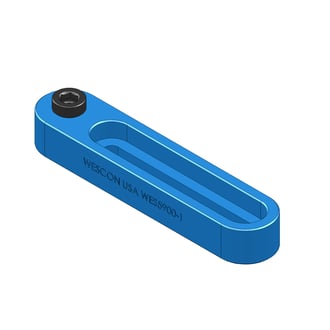

* The image represents the general look of the series. Actual product may vary based on options selected.
Price$38.50
|
Stock:Ships Next Business Day
Login to access real-time inventory.
YOUR BUILD
WES5900-2
$38.50
Stock: Ships Next Business Day
PRODUCT DETAILS
A threaded drill bar takes threaded drill bushings instead of slip bushings. The Wescon WES5900 fits WES5501 or any standard 3/8-16 OD threaded bushing and WES5502 or any 1/2-13 OD threaded bushing. The bushing screws in, so there is no set screw to loosen and no bushing to drop out of the snatch block on the shop floor.
Clamp the bar through its slot, thread in the bushing size you need, set it over the hole and drill, ream or pull the hole. Anodized aluminum, half a pound, made in USA. Also called a steam boat.
CONFIGURE
Your Selected Model: WES5900-2
Bushing Size Options: 1/2-13
1
3/8-16
2
1/2-13
NOTES FROM OUR ENGINEERING TEAM
Downloads
Also Referred to as
- 5900-2
- Bushing holder drill bar 5900-2
- Drill bar 5900-2
- Snatch block bushing holder
- Steam boat bushing holder
VARIANTS - WES5900
Wescon WES5900 drill bars. Adjustable single-ended drill bars, for WES5501 (3/8-16) or WES5502 (1/2-13) threaded bushings. Made in USA.
| Part Number | Lead Time | Bushing Size | Bushing Type | Bushing Length |
|---|---|---|---|---|
| WES5900-1 | Ships Next Business Day | 3/8-16 | Threaded | 0.80 in |
| WES5900-2 | Ships Next Business Day | 1/2-13 | Threaded | 0.80 in |
| WES5901 | Ships Next Business Day | 3/8-16 and 1/2-13 Double Ended | Threaded | 0.80 in |
| WES5902-1 | Ships in 4 Weeks | 3/8-16 | Threaded | 0.80 in |
| WES5902-2 | Ships Next Business Day | 1/2-13 | Threaded | 0.80 in |
| WES5903-1 | Ships in 4 Weeks | 3/8-16 | Threaded | 0.80 in |
| WES5903-2 | Ships Next Business Day | 1/2-13 | Threaded | 0.80 in |
