Wescon WES5902 Up-Down Swivel Drill Bar, Threaded Bushing - 3/8‑16 Bushing

Name: Wescon WES5902 Up-Down Swivel Drill Bar, Threaded Bushing - 3/8-16 Bushing
Brand: Wescon
SKU: WES5902-1
Price: 49.5 USD
Availability: BackOrder

Adjustable drill bars with swivel head (up-down) for WES5501 series 3/8-16 threaded bushings.

Item 1 of 2

Part Number

WES5902-1

Bushing Size

3/8-16

Bushing Type

Threaded

Bushing Length

0.80 in

Country of Origin

USA

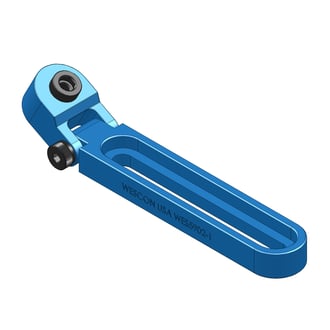

* The image represents the general look of the series. Actual product may vary based on options selected.

Price$49.50

StockShips in 4 Weeks

YOUR BUILD

WES5902-1

$49.50

Stock: Ships in 4 Weeks

Product details

The Wescon WES5902 is an up-down swivel drill bar for 3/8-16 and 1/2-13 threaded bushings. The head tilts so the bushing stays square to a curved or angled surface while the bar clamps flat. Threaded bushing, no set screw, no dropped bushings. Anodized aluminum steam boat with a swivel head, made in USA.

Configure

Your Selected Model: WES5902-1

Bushing Size Options: 3/8-16

3/8-16

1/2-13

NOTES FROM OUR ENGINEERING TEAM

WES5501

Maximum I.D. .2570". Made of Hardened Steel. Exclusive Hex Socket Head for easier installation and removal.

Downloads

Download Datasheet PDF

Also referred to as

5902-1
Bushing holder drill bar 5902-1
Drill bar 5902-1
Snatch block bushing holder
Steam boat bushing holder

Variants: WES5902

Wescon WES5902 drill bars. Adjustable drill bars with swivel head (up-down), for WES5501 (3/8-16) or WES5502 (1/2-13) threaded bushings. Made in USA.

Part Number	Lead Time	Bushing Size	Bushing Type	Bushing Length
WES5900-1	Ships Next Business Day	3/8-16	Threaded	0.80 in
WES5900-2	Ships Next Business Day	1/2-13	Threaded	0.80 in
WES5901	Ships Next Business Day	3/8-16 and 1/2-13 Double Ended	Threaded	0.80 in
WES5902-1	Ships in 4 Weeks	3/8-16	Threaded	0.80 in
WES5902-2	Ships Next Business Day	1/2-13	Threaded	0.80 in
WES5903-1	Ships in 4 Weeks	3/8-16	Threaded	0.80 in
WES5903-2	Ships Next Business Day	1/2-13	Threaded	0.80 in
