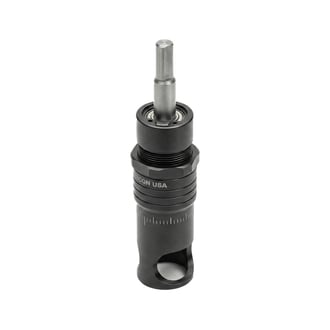

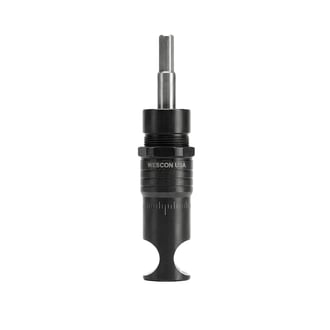

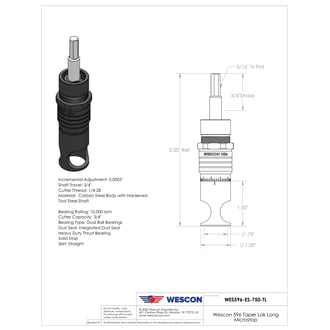

Wescon Taper Lok Microstop - 1/4-28 - 3/4" Cutter Capacity - Straight

Wescon Long-Travel Taper-Lok Microstop Cages

Wescon heavy-duty, long-travel microstop cages are made for Taper-Lok drill-reamers. Built to handle continuous high-thrust loads and deep-hole drilling, these cages give the stroke length and rigid depth control required for interference fit fastener installation.

• Depth Control: Micrometer dial adjustment sleeve in .0005" increments.
• Locking Mechanism: Positive non-slip lock ring.
• Bearing Design: Heavy-duty enclosed ball bearings rated for 10,000 RPM.

Taper-Lok Cage Cross-Reference & Sizing Guide

Custom Taper-Lok Configurations & Application-Specific Skirts

Wescon builds custom Taper-Lok microstop cages for cutters and reamers a standard cage will not take, along with tight-clearance and custom jig versions.

For a modified skirt footprint to clear an adjacent stringer, or a specialized nose to fit a custom drill jig, our in-house machining division can build to your print or reverse-engineer a solution.

Custom Microstop Capabilities

• Specialized Skirts: Cutaway, offset, and low-profile skirts for restricted-access areas and tight radii.
• Drill Jig Integration: Custom slip-fit noses and specialized ODs made to fit your existing drill templates and drill bushings.
• Non-Marring Surfaces: Custom-machined nylon or phenolic foot pieces to prevent surface galling on composites and clad aluminum.
• Non-Standard Travel & Threading: Custom shaft travel lengths, cutter capacities, and thread sizes beyond the standard range.
