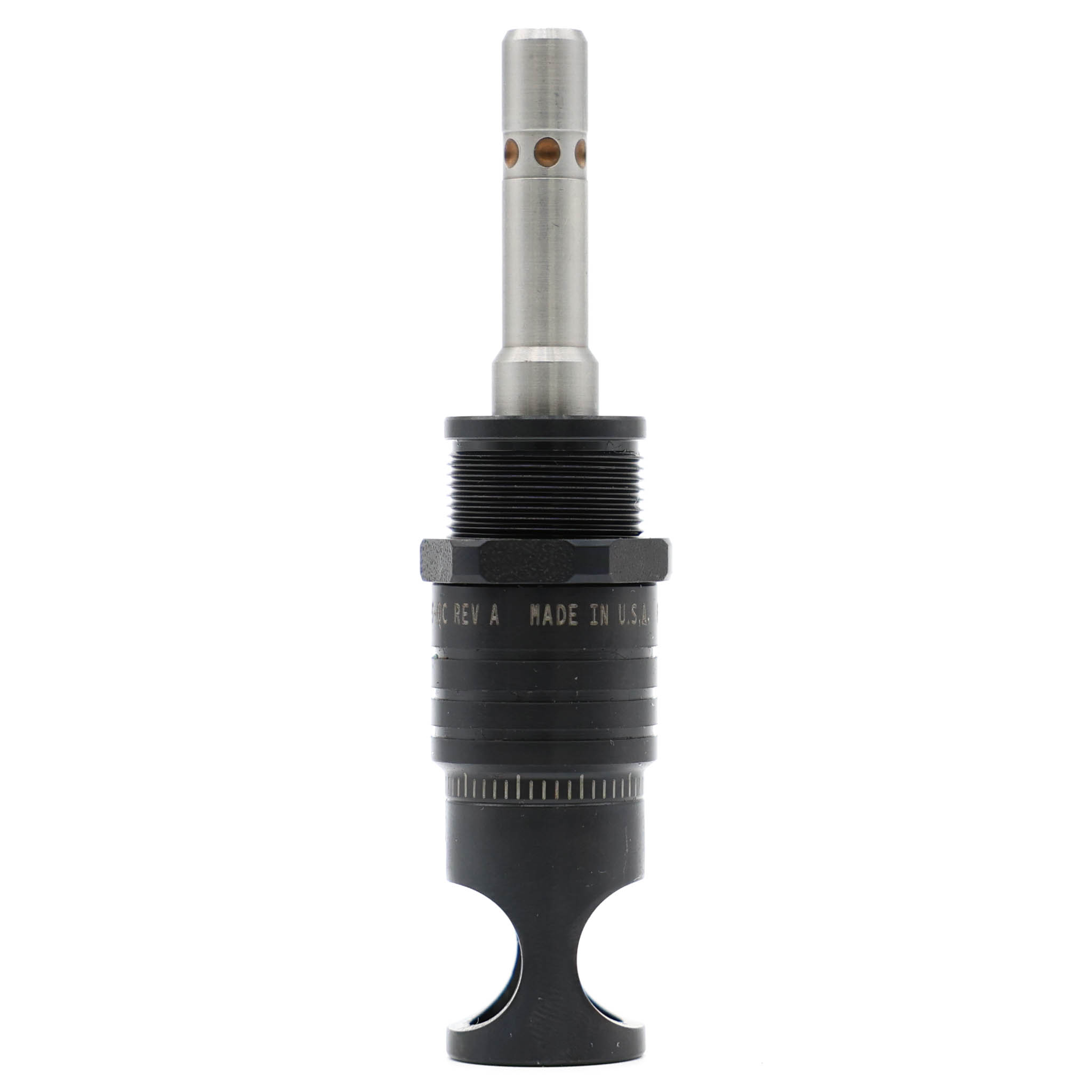

Wescon Model 396 Microstop - 1/2 in Cutter Capacity - Straight Skirt
SMALL CAPACITY / TIGHT SPACE APPLICATIONS
Part NumberWES396-S-QC
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball-Bearings
Heavy Duty Thrust Bearing
: No
Incremental Adjustment
: 0.0005 in
Shaft Travel
: 1/8 in
Cutter Thread
: 1/4-28
Shaft
: Quick Change
Shaft Diameter
: 1/4 in
Cutter Capacity
: 1/2 in
Skirt
: Straight
Solid Stop
: Yes
Country of Origin
: USA
CONFIGURE
Your Selected Model: WES396-S-QC
Skirt Style: Straight (S)
S
Straight
S3L
3-Leg
I
Internal Thread
E
External Thread
Foot Style (Available only for Skirts: I, E)
N
Nylon
Shaft Style: Quick Change (QC)
STANDARD
TS
TF
Tri-Flat
QC
Quick Change
VARIANTS - WES396 Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot |
|---|---|---|---|---|---|
| WES396-IN | 1/4-28 | 7/16 in | Standard | Internal Thread | Nylon |
| WES396-IN-TF | 1/4-28 | 7/16 in | Tri-Flat | Internal Thread | Nylon |
| WES396-IN-QC | 1/4-28 | 7/16 in | Quick Change | Internal Thread | Nylon |
| WES396-EN | 1/4-28 | 1/2 in | Standard | External Thread | Nylon |
| WES396-EN-TS | 1/4-28 | 1/2 in | Threaded | External Thread | Nylon |
| WES396-EN-TF | 1/4-28 | 1/2 in | Tri-Flat | External Thread | Nylon |
| WES396-S | 1/4-28 | 1/2 in | Standard | Straight | |
| WES396-S-TF | 1/4-28 | 1/2 in | Tri-Flat | Straight | |
| WES396-S3L-TF | 1/4-28 | 1/2 in | Tri-Flat | 3-Leg | |
| WES396-S3L-QC | 1/4-28 | 1/2 in | Quick Change | 3-Leg | |
| WES396-S3L | 1/4-28 | 1/2 in | Standard | 3-Leg | |
| WES396-S3L-TS | 1/4-28 | 1/2 in | Threaded | 3-Leg | |
| WES396-EN-QC | 1/4-28 | 1/2 in | Quick Change | External Thread | Nylon |
| WES396-S-QC | 1/4-28 | 1/2 in | Quick Change | Straight | |
| WES396-IN-TS | 1/4-28 | 7/16 in | Threaded | Internal Thread | Nylon |
| WES396-S-TS | 1/4-28 | 1/2 in | Threaded | Straight |
