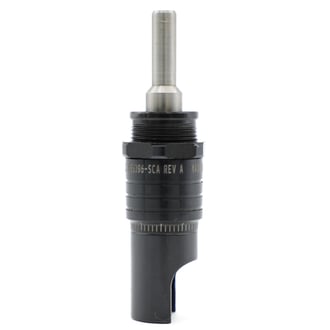

Wescon 396 METRIC Microstop - M6x1 - 12 mm Cutter Capacity - Straight Cutaway Skirt
CONFIGURE
Skirt Style: Straight Cutaway (SCA)
S
Straight
SL
Slotted
I
Internal Thread
SI
Slotted Internal Thread
E
External Thread
SE
Slotted External Thread
SCA
Straight Cutaway
S3L
3-Leg
Foot Style (Available only for Skirts: I, SI, E, SE)
N
Nylon
Shaft Style: Tri-Flat (TF)
STANDARD
Round
TS
TF
Tri-Flat
QC
Quick Change
Shaft Thread: M6x1 (6)
6
M6x1
Also Referred to as
- 396-6-SCA-TF
- Micro-stop 396-6-SCA-TF
- Regulador Micrometrico 396-6-SCA-TF
- Countersink cage 396-6-SCA-TF
- Micro stop drill cage 396-6-SCA-TF
VARIANTS - WES396-METRIC Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot |
|---|---|---|---|---|---|
| WES396-6-IN-TF | M6x1 | 11 mm | Tri-Flat | Internal Thread | Nylon |
| WES396-6-IN-QC | M6x1 | 11 mm | Quick Change | Internal Thread | Nylon |
| WES396-6-S-TS | M6x1 | 12 mm | Threaded | Straight | |
| WES396-6-S-QC | M6x1 | 12 mm | Quick Change | Straight | |
| WES396-6-S-TF | M6x1 | 12 mm | Tri-Flat | Straight | |
| WES396-6-SCA-TS | M6x1 | 12 mm | Threaded | Straight Cutaway | |
| WES396-6-SCA-QC | M6x1 | 12 mm | Quick Change | Straight Cutaway | |
| WES396-6-SCA-TF | M6x1 | 12 mm | Tri-Flat | Straight Cutaway | |
| WES396-6-EN-TS | M6x1 | 12 mm | Threaded | External Thread | Nylon |
| WES396-6-S3L-TF | M6x1 | 12 mm | Tri-Flat | 3-Leg | |
| WES396-6-S3L | M6x1 | 12 mm | Round | 3-Leg | |
| WES396-6-SL | M6x1 | 12 mm | Round | Slotted | |
| WES396-6-SL-TS | M6x1 | 12 mm | Threaded | Slotted | |
| WES396-6-SL-TF | M6x1 | 12 mm | Tri-Flat | Slotted | |
| WES396-6-SL-QC | M6x1 | 12 mm | Quick Change | Slotted | |
| WES396-6-IN-TS | M6x1 | 11 mm | Threaded | Internal Thread | Nylon |
| WES396-6-SIN-TF | M6x1 | 11 mm | Tri-Flat | Slotted Internal Thread | Nylon |
| WES396-6-SIN-QC | M6x1 | 11 mm | Quick Change | Slotted Internal Thread | Nylon |
| WES396-6-IN | M6x1 | 11 mm | Round | Internal Thread | Nylon |
| WES396-6-EN-TF | M6x1 | 12 mm | Tri-Flat | External Thread | Nylon |
| WES396-6-SEN | M6x1 | 12 mm | Round | Slotted External Thread | Nylon |
| WES396-6-SEN-TS | M6x1 | 12 mm | Threaded | Slotted External Thread | Nylon |
| WES396-6-EN | M6x1 | 12 mm | Round | External Thread | Nylon |
| WES396-6-EN-QC | M6x1 | 12 mm | Quick Change | External Thread | Nylon |
| WES396-6-SEN-TF | M6x1 | 12 mm | Tri-Flat | Slotted External Thread | Nylon |
| WES396-6-SEN-QC | M6x1 | 12 mm | Quick Change | Slotted External Thread | Nylon |
| WES396-6-S | M6x1 | 12 mm | Round | Straight | |
| WES396-6-SIN | M6x1 | 11 mm | Round | Slotted Internal Thread | Nylon |
| WES396-6-SIN-TS | M6x1 | 11 mm | Threaded | Slotted Internal Thread | Nylon |
| WES396-6-SCA | M6x1 | 12 mm | Round | Straight Cutaway | |
| WES396-6-S3L-TS | M6x1 | 12 mm | Threaded | 3-Leg | |
| WES396-6-S3L-QC | M6x1 | 12 mm | Quick Change | 3-Leg |
