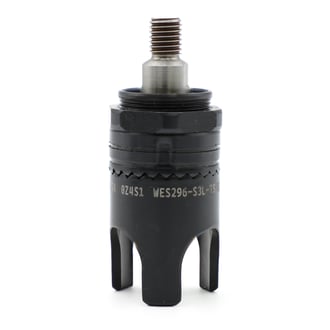

Wescon 296 Microstop - 1/4-28 - 5/8" Cutter Capacity - 3-Leg Skirt
CLOSE QUARTERS USE
Item 1 of 4
Item 1 of 4
Part NumberWES296-S3L-TS
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball Bearings
Heavy Duty Thrust Bearing
: No
Incremental Adjustment
: 0.001 in
Shaft Travel
: 1/8 in
Cutter Thread
: 1/4-28
Shaft
: Threaded
Shaft Diameter
: 1/4 in
Cutter Capacity
: 5/8 in
Skirt
: 3-Leg
Solid Stop
: Yes
Material
: Steel
Country of Origin
: USA
Stock
:
Ships Next Business Day
Login to access real-time inventory.
Price: $95.00
YOUR BUILD
WES296-S3L-TS
$95.00
Stock: Ships Next Business Day
CONFIGURE
Your Selected Model: WES296-S3L-TS
Skirt Style: 3-Leg (S3L)
S
Straight
S2L
2-Leg
S3L
3-Leg
I
Internal Thread
Foot Style (Available only for Skirts: I)
N
Nylon
Shaft Style: (TS)
TS
QC
Quick Change
Downloads
Also Referred to as
- 296-S3L-TS
- Micro-stop 296-S3L-TS
- Regulador Micrometrico 296-S3L-TS
- Butee Micrometrique
- Micro-Stops de avellanado
- Countersink cage 296-S3L-TS
- Micro stop drill cage 296-S3L-TS
- Stubby
- Mini
VARIANTS - WES296 Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot | Lead Time | Anti-Rotation Pin |
|---|---|---|---|---|---|---|---|
| WES296-IN-QC | 1/4-28 | 1/2 in | Quick Change | Internal Thread | Nylon | Ships Next Business Day | |
| WES296-IN-TS | 1/4-28 | 1/2 in | Threaded | Internal Thread | Nylon | Ships Next Business Day | |
| WES296-IN-TS-AR | 1/4-28 | 1/2 in | Threaded | Internal Thread | Nylon | Ships in 2 Weeks | Included |
| WES296-S2L-QC | 1/4-28 | 5/8 in | Quick Change | 2-Leg | Ships in 2 Weeks | ||
| WES296-S2L-TS | 1/4-28 | 5/8 in | Threaded | 2-Leg | Ships Next Business Day | ||
| WES296-S2L-TS-AR | 1/4-28 | 5/8 in | Threaded | 2-Leg | Ships in 2 Weeks | Included | |
| WES296-S3L-QC | 1/4-28 | 5/8 in | Quick Change | 3-Leg | Ships in 2 Weeks | ||
| WES296-S3L-TS | 1/4-28 | 5/8 in | Threaded | 3-Leg | Ships Next Business Day | ||
| WES296-S3L-TS-AR | 1/4-28 | 5/8 in | Threaded | 3-Leg | Ships in 2 Weeks | Included | |
| WES296-S-QC | 1/4-28 | 5/8 in | Quick Change | Straight | Ships in 2 Weeks | ||
| WES296-S-TS | 1/4-28 | 5/8 in | Threaded | Straight | Ships Next Business Day | ||
| WES296-S-TS-AR | 1/4-28 | 5/8 in | Threaded | Straight | Ships Next Business Day | Included |
