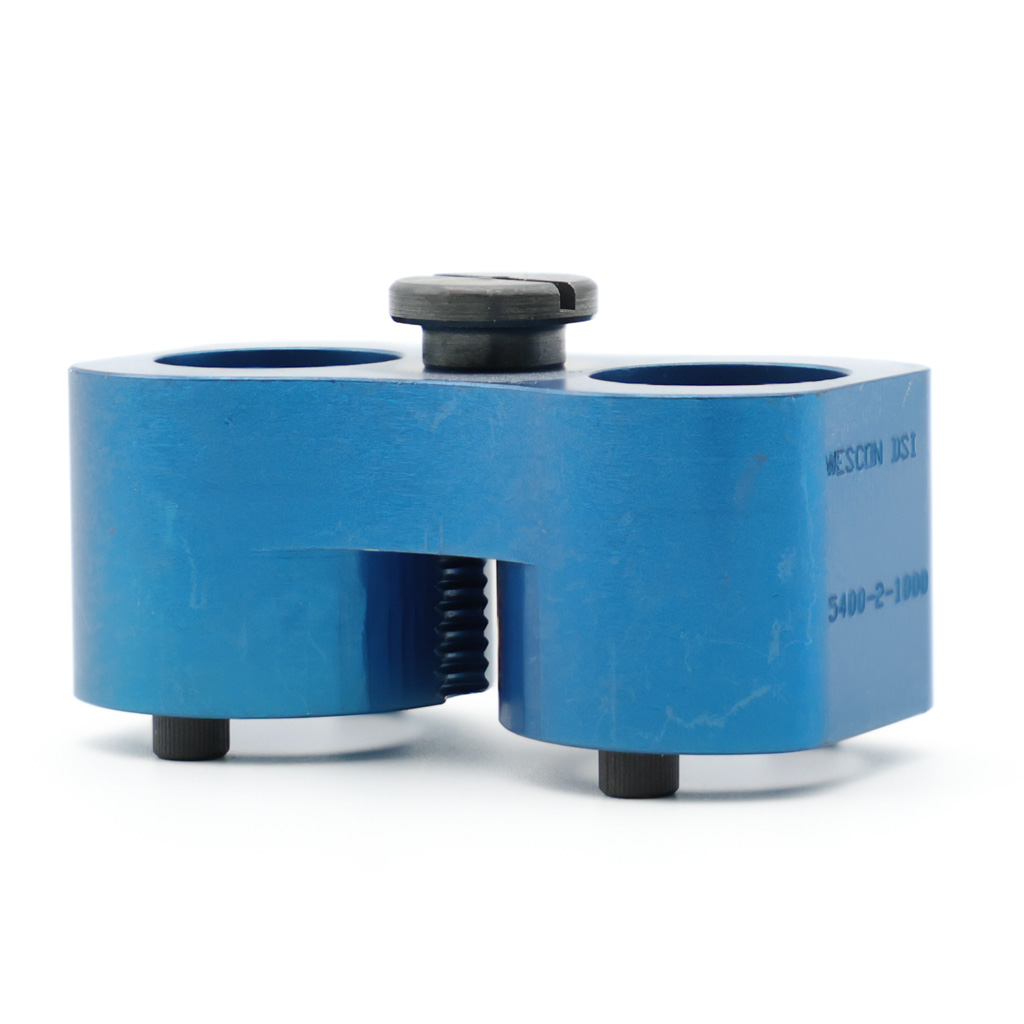

Wescon WES5400 Dog Bone Drill Guide for SF Bushings 3/4"
Item 1 of 2
Item 1 of 2
Part Number
WES5400-2-1000
Drill Bushing OD
3/4"
Height
1"
Drill Bushing Type
SF Drill Bushing
Material
Anodized Aluminum
Country of Origin
USA
Price$43.00
|
StockShips Next Business Day
Login to access real-time inventory.
YOUR BUILD
WES5400-2-1000
$43.00
Stock: Ships Next Business Day
Product details
Dog Bone Drill Guide for SF Bushings, for hand held drilling. Ergonomic and easy to position, it keeps the drill perpendicular to the work surface. Nylon feet on each drill block protect the drilling surface. Made from anodized aluminum for durability and wear resistance. To be used with standard slip/fixed type renewable drill bushings (sold separately).
Configure
Your Selected Model: WES5400-2-1000
NOTES FROM OUR ENGINEERING TEAM
Downloads
Also referred to as
- 5400-2-1000
- Drill guide 5400-2-1000
Variants: WES5400
| Part Number | Lead Time | Bushing Type | Drill Bushing OD | Height |
|---|---|---|---|---|
| WES5400-1-1000 | Ships Next Business Day | SF Drill Bushing | 1/2" | 1" |
| WES5400-1-500 | Ships Next Business Day | SF Drill Bushing | 1/2" | 1/2" |
| WES5400-1-750 | Ships Next Business Day | SF Drill Bushing | 1/2" | 3/4" |
| WES5400-2-1000 | Ships Next Business Day | SF Drill Bushing | 3/4" | 1" |
| WES5400-2-500 | Ships Next Business Day | SF Drill Bushing | 3/4" | 1/2" |
| WES5400-2-750 | Ships Next Business Day | SF Drill Bushing | 3/4" | 3/4" |
