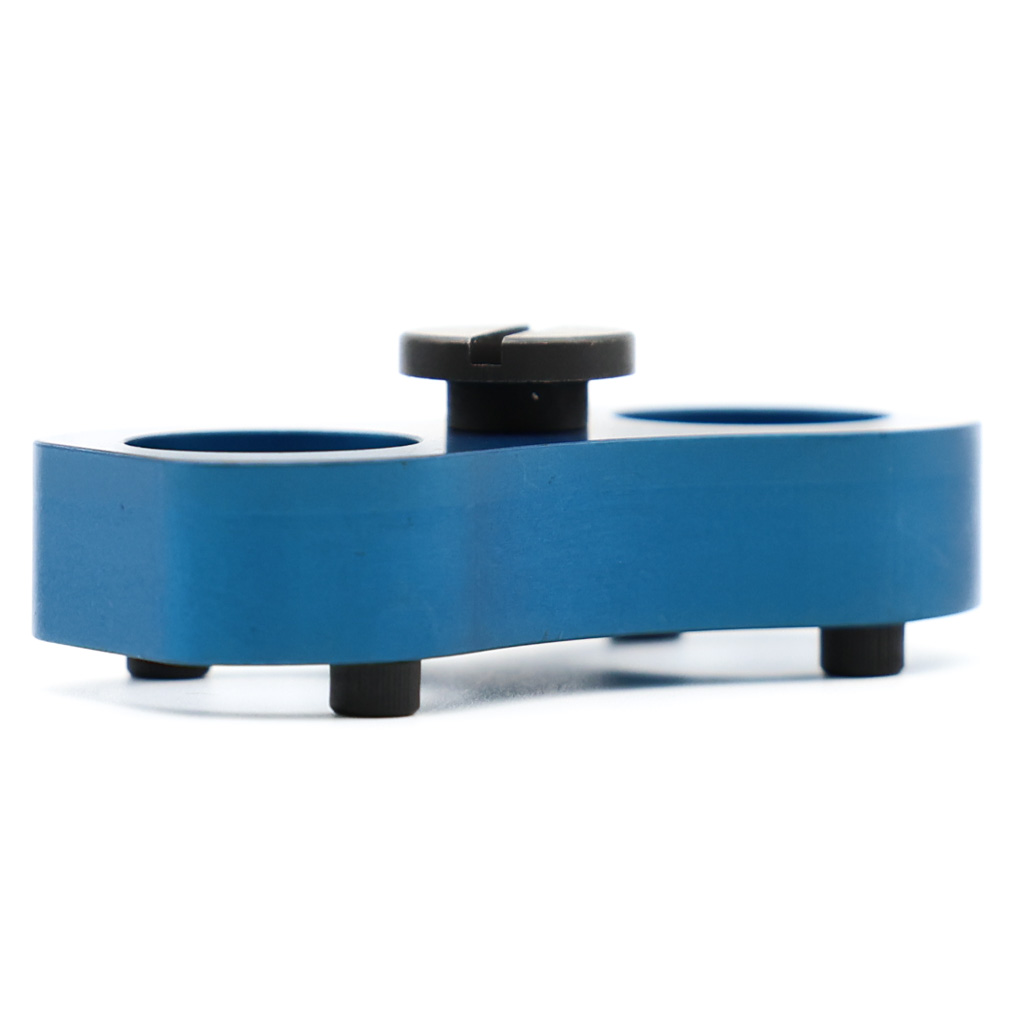

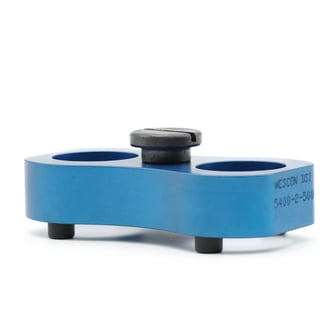

Wescon Model WES5400 SR Type Dog Bone Drill Guide 3/4"

Part NumberWES5400-2-500
Drill Bushing Size
3/4"
Height
.50 in
Material
Anodized Aluminum
Country of Origin
USA
Stock
:
Ships Next Business Day

Login to access real-time inventory.
Price: $35.00
YOUR BUILD
WES5400-2-500
$35.00
Stock: Ships Next Business Day

PRODUCT DETAILS

SR Type Dog Bone Drill Guide - used to guide drill in hand held drilling applications. Ergonomic design for superior positioning and alignment in order to drill perpendicular to the work surface. Nylon feet on each drill block to protect the drilling surface. Made from anonized aluminum for increased durability and wear resistance. To be used with standard slip/fixed type renewable drill bushings (sold separately).

CONFIGURE

Your Selected Model:  WES5400-2-500

Drill Bushing Size Options: 3/4"

1

1/2"

2

3/4"

Height Options: .50 in

500

.50 in

750

.75 in

1000

1.00 in

Also Referred to as

  • 5400-2-500
  • Drill guide 5400-2-500

VARIANTS - WES5400

Part NumberDrill Bushing SizeHeight
WES5400-1-10001/2"1.00 in
WES5400-1-5001/2".50 in
WES5400-1-7501/2".75 in
WES5400-2-10003/4"1.00 in
WES5400-2-5003/4".50 in
WES5400-2-7503/4".75 in
