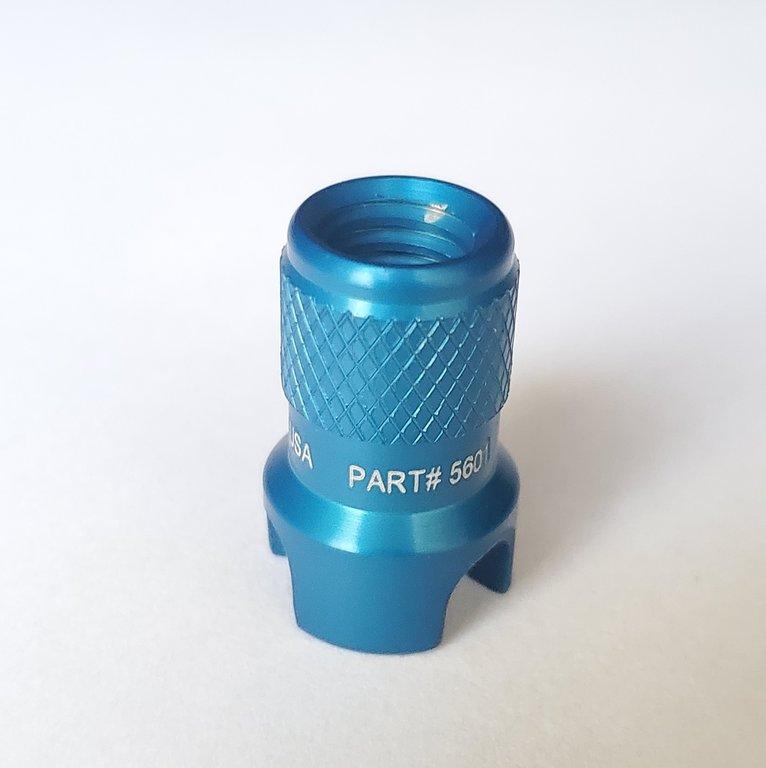

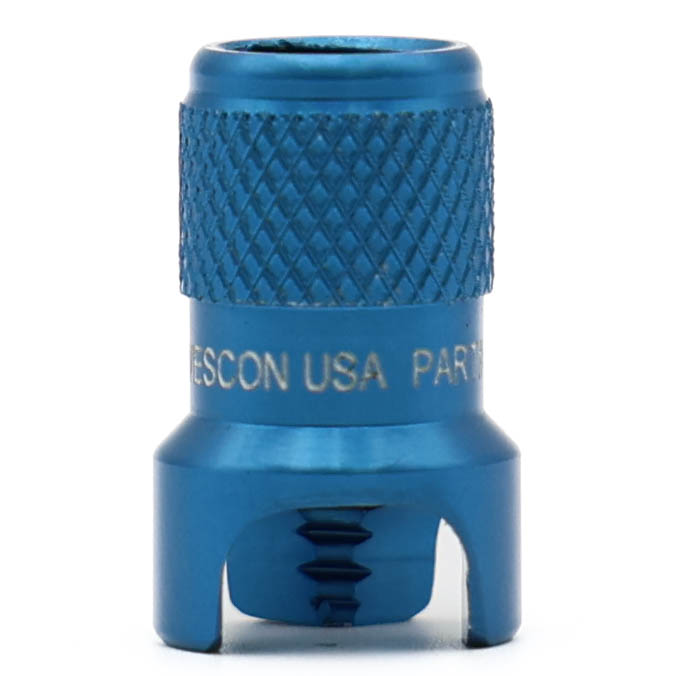

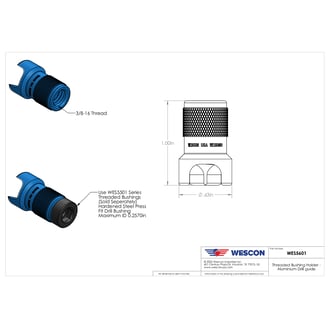

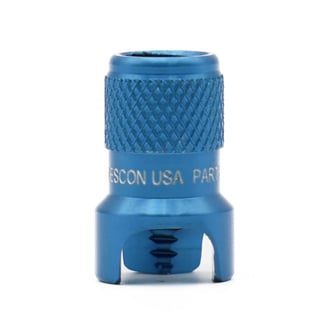

Wescon WES5601 Threaded Type Mini Drill Guide - 3/8"-16 Threaded

Name: Wescon WES5601 Threaded Type Mini Drill Guide - 3/8"-16 Threaded
Brand: Wescon
SKU: WES5601

3/8"-16 I.D. thread for use with WES5501 series bushings

(Replaced)

Item 1 of 2

Part Number

WES5601

Drill Bushing Size

3/8"-16

Height

1.00"

Diameter

0.63"

Drill Bushing Type

Threaded Drill Bushing

Material

Anodized Aluminum

Country of Origin

USA

This product has been replaced

Part Number WES5601 has been replaced by WES5621-A.

View Replacement Product

Product details

Mini drill bushing holder for threaded drill bushings, for precise, stable drilling in tight or hard-to-reach spaces. Made from aerospace-grade anodized aluminum for strength and long wear, with tight tolerances for accurate holes.

NOTES FROM OUR ENGINEERING TEAM

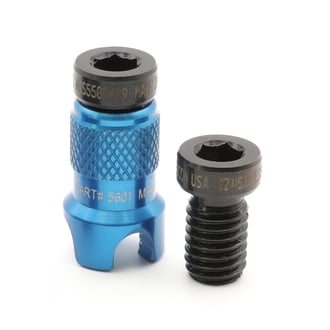

Recommended for use with WES5501 or any standard 3/8"-16 threaded drill bushing.

WES5631

Wescon Model WES5631 Drill Guide Handle

WES5501

Maximum I.D. .2570". Made of Hardened Steel. Exclusive Hex Socket Head for easier installation and removal.

Explore our next-generation threaded bushings with heavy-duty plastic feet.

WES5620

Mini Drill Guide - Threaded

Downloads

Download Datasheet PDF

Also referred to as

5601
Drill guide 5601

Variants: WES5600

Part Number	Lead Time	Bushing Type	Drill Bushing Size	Height
WES5601	-	Threaded Drill Bushing	3/8"-16	1.00"
WES5602	Ships Next Business Day	Threaded Drill Bushing	1/2"-13	1.13"
