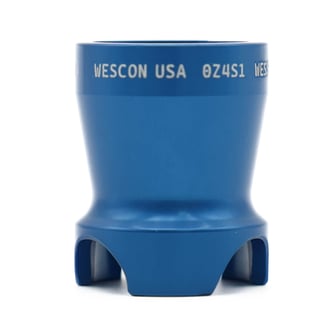

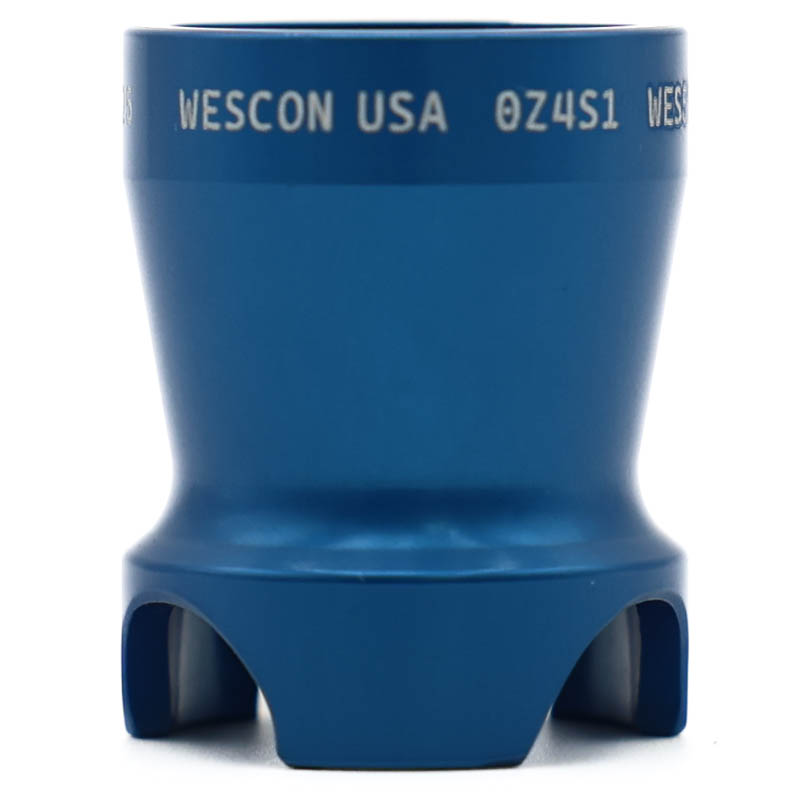

Wescon 5703-2-A Egg Cup Drill Guide
Use with 1/2" OD X 3/4" Len. Slip/Fixed Renewable Bushings.
Item 1 of 2
Item 1 of 2
Part NumberWES5703-2-A
Drill Bushing Size
1/2" OD x 3/4" Len.
Height
1.50"
Diameter
1.20"
Drill Bushing Type
SR Drill Bushing
Material
Anodized Aluminum
Country of Origin
USA
Stock
:
Ships Next Business Day
Login to access real-time inventory.
Price: $34.80
YOUR BUILD
WES5703-2-A
$34.80
Stock: Ships Next Business Day
PRODUCT DETAILS
Portable hand held drill cup to enable accurate drilling in flat or curved surfaces. Choose our anodized aluminum drill cups for superior durability and performance, don't settle for plastic alternatives.
NOTES FROM OUR ENGINEERING TEAM
For threaded drill bushings, refer to the option below
Downloads
Also Referred to as
- 5703-2-A
- Drill guide 5703-2-A

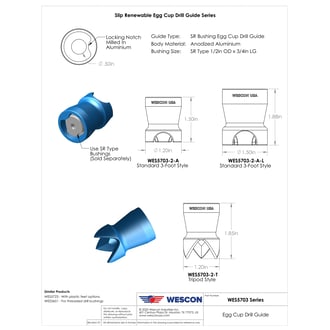

VARIANTS - WES5703
| Part Number | Lead Time | Bushing Type | Drill Bushing Size | Height |
|---|---|---|---|---|
| WES5703-2-A | Ships Next Business Day | SR Drill Bushing | 1/2" OD x 3/4" Len. | 1.50" |
| WES5703-2-A-L | Ships in 2 Weeks | SR Drill Bushing | 1/2" OD x 3/4" Len. | 1.88" |
| WES5703-2-T | Ships Next Business Day | SR Drill Bushing | 1/2" OD x 3/4" Len. | 1.85" |
