Wescon Model 296 Microstop - 5/8 in Cutter Capacity - 3-Leg Skirt
CLOSE QUARTERS USE
Part NumberWES296-S3L-TS
Measurement Type
: Imperial
Bearing Rating
: 10,000 rpm
Bearing Type
: Dual Ball Bearings
Heavy Duty Thrust Bearing
: No
Incremental Adjustment
: 0.001 in
Shaft Travel
: 1/8 in
Cutter Thread
: 1/4-28
Shaft
: Threaded
Shaft Diameter
: 1/4 in
Cutter Capacity
: 5/8 in
Skirt
: 3-Leg
Solid Stop
: Yes
Country of Origin
: USA

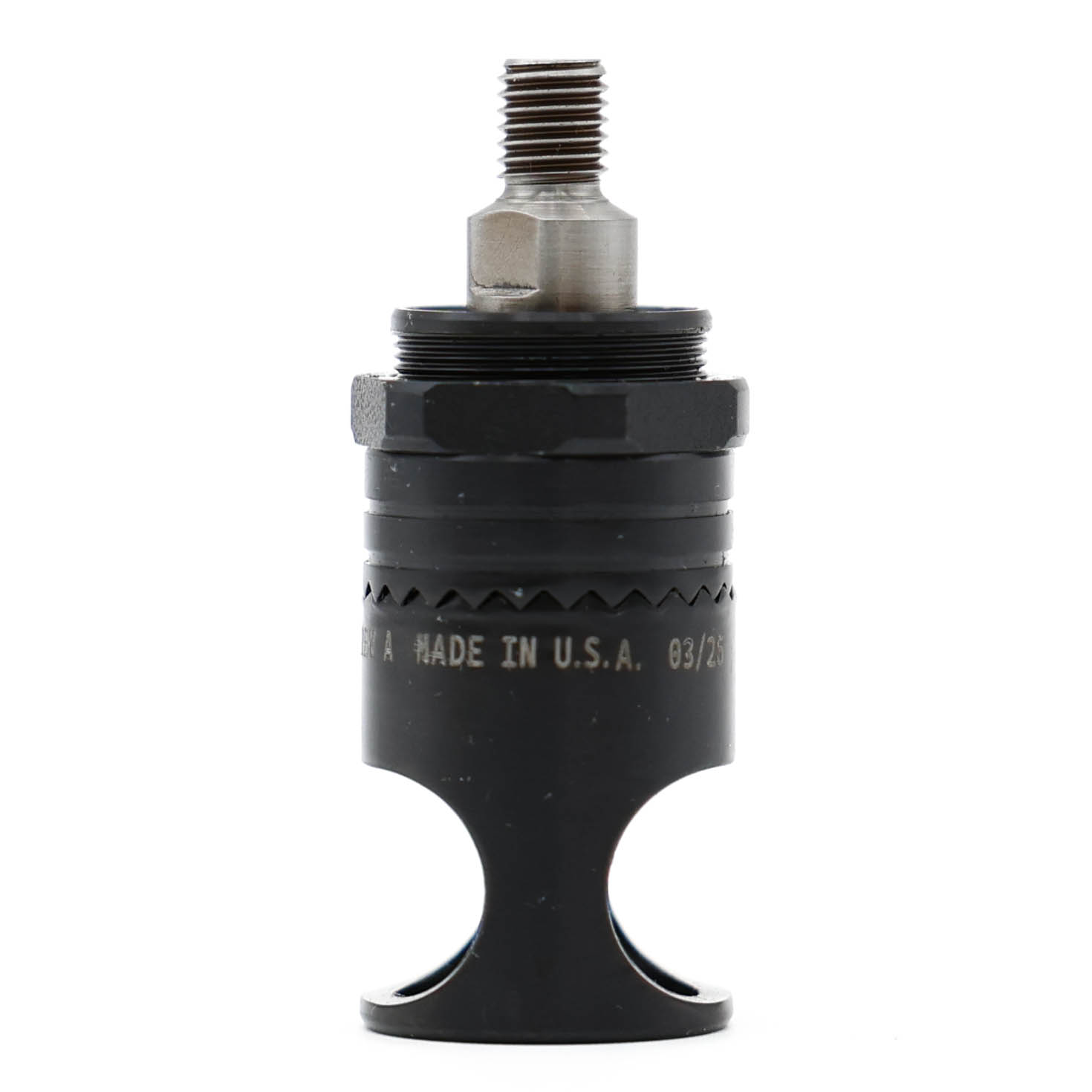

* The image represents the general look of the series. Actual product may vary based on options selected.
CONFIGURE
Your Selected Model: WES296-S3L-TS
Skirt Style: 3-Leg (S3L)
S
Straight
S2L
2-Leg
S3L
3-Leg
I
Internal Thread
Foot Style (Available only for Skirts: I)
N
Nylon
Shaft Style: (TS)
TS
QC
Quick Change
VARIANTS - WES296 Microstops
| Part Number | Cutter Thread | Cutter Capacity | Shaft Style | Skirt | Foot | Anti-Rotation Pin |
|---|---|---|---|---|---|---|
| WES296-S2L-TS-AR | 1/4-28 | 5/8 in | Threaded | 2-Leg | Included | |
| WES296-S3L-TS-AR | 1/4-28 | 5/8 in | Threaded | 3-Leg | Included | |
| WES296-S3L-TS | 1/4-28 | 5/8 in | Threaded | 3-Leg | ||
| WES296-S3L-QC | 1/4-28 | 5/8 in | Quick Change | 3-Leg | ||
| WES296-S-TS | 1/4-28 | 5/8 in | Threaded | Straight | ||
| WES296-S-TS-AR | 1/4-28 | 5/8 in | Threaded | Straight | Included | |
| WES296-S-QC | 1/4-28 | 5/8 in | Quick Change | Straight | ||
| WES296-S2L-TS | 1/4-28 | 5/8 in | Threaded | 2-Leg | ||
| WES296-IN-QC | 1/4-28 | 1/2 in | Quick Change | Internal Thread | Nylon | |
| WES296-IN-TS | 1/4-28 | 1/2 in | Threaded | Internal Thread | Nylon | |
| WES296-S2L-QC | 1/4-28 | 5/8 in | Quick Change | 2-Leg | ||
| WES296-IN-TS-AR | 1/4-28 | 1/2 in | Threaded | Internal Thread | Nylon | Included |
