Wescon 596 Metric Microstop - M6x1 - 15.88 mm Cutter Capacity - Straight 22.22 mm OD Skirt

HIGH SPEED HEAVY DUTY METRIC THREADS

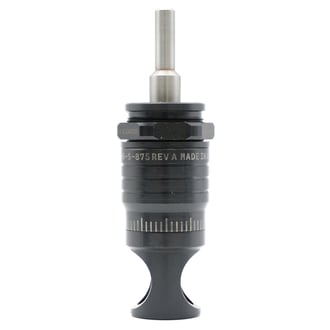

Product Image
Part NumberWES596-6-S-875-QC
Measurement Type
Metric
Bearing Rating
10,000 rpm
Bearing Type
Dual Ball Bearings
Heavy Duty Thrust Bearing
Yes
Incremental Adjustment
0.013 mm
Shaft Travel
7.60 mm
Dust Seal
Integrated Dust Seal
Cutter Thread
M6x1
Shaft
Quick Change
Shaft Diameter
6.35 mm
Cutter Capacity
15.88 mm
Skirt
Straight 22.22 mm OD
Skirt Description
22.22 mm OD 15.88 mm Cutter Capacity
Solid Stop
Yes
Country of Origin
USA
* The image represents the general look of the series. Actual product may vary based on options selected.

CONFIGURE

Your Selected Model:  WES596-6-S-875-QC

Skirt Style: Straight 22.22 mm OD (S-875)

Straight

S

Straight

2-Leg

S2L

2-Leg

3-Leg

S3L

3-Leg

Flanged

F

Flanged

Flanged High

FH

Flanged High

Internal Thread

I

Internal Thread

Slotted Internal Thread

SI

Slotted Internal Thread

External Thread

E

External Thread

Bell

B

Bell

Bell Internal Thread

BI

Bell Internal Thread

Slotted Bell Internal Thread

SBI

Slotted Bell Internal Thread

Bell External Thread

BE

Bell External Thread

Bell Flanged

BF

Bell Flanged

Straight Cutaway

SCA

Straight Cutaway

Flanged Cutaway

FCA

Flanged Cutaway

Flanged 2-Leg

F2L

Flanged 2-Leg

Close Quarters

C

Close Quarters

Straight 22.22 mm OD

S-875

Straight 22.22 mm OD

Flanged 28.58 mm OD

F-1125

Flanged 28.58 mm OD

Foot Style (Available only for Skirts: I, SI, E, BI, SBI, BE)

N

Nylon

S

Steel

P

Phenolic

Shaft Style: Quick Change (QC)

Round

STANDARD

Round

Tri-Flat

TF

Tri-Flat

Quick Change

QC

Quick Change

Shaft Thread: M6x1 (6)

6

M6x1

8

M8x1

VARIANTS - WES596-METRIC Microstops

Part NumberCutter ThreadCutter CapacityShaft StyleSkirtFoot
WES596-6-EN-TFM6x119 mmTri-FlatExternal ThreadNylon
WES596-6-EN-QCM6x119 mmQuick ChangeExternal ThreadNylon
WES596-6-ES-QCM6x119 mmQuick ChangeExternal ThreadSteel
WES596-6-BIS-QCM6x119 mmQuick ChangeBell Internal ThreadSteel
WES596-6-BESM6x122 mmRoundBell External ThreadSteel
WES596-6-IS-QCM6x115 mmQuick ChangeInternal ThreadSteel
WES596-6-ES-TFM6x119 mmTri-FlatExternal ThreadSteel
WES596-6-BES-QCM6x122 mmQuick ChangeBell External ThreadSteel
WES596-6-BIN-TFM6x119 mmTri-FlatBell Internal ThreadNylon
WES596-6-ISM6x115 mmRoundInternal ThreadSteel
WES596-6-BM6x122 mmRoundBell
WES596-6-S2L-TFM6x119 mmTri-Flat2-Leg
WES596-6-S2LM6x119 mmRound2-Leg
WES596-6-S-TFM6x119 mmTri-FlatStraight
WES596-6-B-TFM6x122 mmTri-FlatBell
WES596-6-B-QCM6x122 mmQuick ChangeBell
WES596-6-SCA-TFM6x119 mmTri-FlatStraight Cutaway
WES596-6-SCA-QCM6x119 mmQuick ChangeStraight Cutaway
WES596-6-F2L-TFM6x119 mmTri-FlatFlanged 2-Leg
WES596-6-F2L-QCM6x119 mmQuick ChangeFlanged 2-Leg
WES596-8-BINM8x119 mmRoundBell Internal ThreadNylon
WES596-8-INM8x115 mmRoundInternal ThreadNylon
WES596-6-FCAM6x119 mmRoundFlanged Cutaway
WES596-6-F-TFM6x119 mmTri-FlatFlanged
WES596-8-IN-TFM8x115 mmTri-FlatInternal ThreadNylon
WES596-8-EN-TFM8x119 mmTri-FlatExternal ThreadNylon
WES596-6-F-QCM6x119 mmQuick ChangeFlanged
WES596-8-ES-QCM8x119 mmQuick ChangeExternal ThreadSteel
WES596-8-EP-TFM8x119 mmTri-FlatExternal ThreadPhenolic
WES596-8-BEP-TFM8x122 mmTri-FlatBell External ThreadPhenolic
WES596-8-ES-TFM8x119 mmTri-FlatExternal ThreadSteel
WES596-8-IP-TFM8x115 mmTri-FlatInternal ThreadPhenolic
WES596-8-BISM8x119 mmRoundBell Internal ThreadSteel
WES596-8-EPM8x119 mmRoundExternal ThreadPhenolic
WES596-6-BIP-QCM6x119 mmQuick ChangeBell Internal ThreadPhenolic
WES596-8-BIS-QCM8x119 mmQuick ChangeBell Internal ThreadSteel
WES596-8-IP-QCM8x115 mmQuick ChangeInternal ThreadPhenolic
WES596-6-SBIN-QCM6x119 mmQuick ChangeSlotted Bell Internal ThreadNylon
WES596-8-SCA-TFM8x119 mmTri-FlatStraight Cutaway
WES596-8-F-TFM8x119 mmTri-FlatFlanged
WES596-6-SBIP-QCM6x119 mmQuick ChangeSlotted Bell Internal ThreadPhenolic
WES596-8-S3LM8x119 mmRound3-Leg
WES596-8-S2L-TFM8x119 mmTri-Flat2-Leg
WES596-8-FM8x119 mmRoundFlanged
WES596-8-S2L-QCM8x119 mmQuick Change2-Leg
WES596-8-FCAM8x119 mmRoundFlanged Cutaway
WES596-8-S3L-QCM8x119 mmQuick Change3-Leg
WES596-8-F-QCM8x119 mmQuick ChangeFlanged
WES596-8-S3L-TFM8x119 mmTri-Flat3-Leg
WES596-8-B-TFM8x122 mmTri-FlatBell
WES596-8-B-QCM8x122 mmQuick ChangeBell
WES596-8-F2L-TFM8x119 mmTri-FlatFlanged 2-Leg
WES596-8-F2LM8x119 mmRoundFlanged 2-Leg
WES596-6-BEP-QCM6x122 mmQuick ChangeBell External ThreadPhenolic
WES596-6-FM6x119 mmRoundFlanged
WES596-6-FHM6x119 mmRoundFlanged High
WES596-6-BFM6x122 mmRoundBell Flanged
WES596-6-BF-TFM6x122 mmTri-FlatBell Flanged
WES596-6-BF-QCM6x122 mmQuick ChangeBell Flanged
WES596-8-FH-QCM8x119 mmQuick ChangeFlanged High
WES596-6-S3L-QCM6x119 mmQuick Change3-Leg
WES596-8-FH-TFM8x119 mmTri-FlatFlanged High
WES596-6-BENM6x122 mmRoundBell External ThreadNylon
WES596-6-BEN-QCM6x122 mmQuick ChangeBell External ThreadNylon
WES596-6-CM6x19.52 mmRoundClose Quarters
WES596-6-C-TFM6x19.52 mmTri-FlatClose Quarters
WES596-6-FH-QCM6x119 mmQuick ChangeFlanged High
WES596-6-SIPM6x115 mmRoundSlotted Internal ThreadPhenolic
WES596-6-C-QCM6x19.52 mmQuick ChangeClose Quarters
WES596-6-SIP-TFM6x115 mmTri-FlatSlotted Internal ThreadPhenolic
WES596-6-SBIS-QCM6x119 mmQuick ChangeSlotted Bell Internal ThreadSteel
WES596-6-S-875M6x115.88 mmRoundStraight 22.22 mm OD
WES596-8-S-QCM8x119 mmQuick ChangeStraight
WES596-8-IN-QCM8x115 mmQuick ChangeInternal ThreadNylon
WES596-6-S-875-TFM6x115.88 mmTri-FlatStraight 22.22 mm OD
WES596-6-SIP-QCM6x115 mmQuick ChangeSlotted Internal ThreadPhenolic
WES596-6-S-875-QCM6x115.88 mmQuick ChangeStraight 22.22 mm OD
WES596-6-FH-TFM6x119 mmTri-FlatFlanged High
WES596-6-F-1125M6x119 mmRoundFlanged 28.58 mm OD
WES596-6-F-1125-TFM6x119 mmTri-FlatFlanged 28.58 mm OD
WES596-6-F-1125-QCM6x119 mmQuick ChangeFlanged 28.58 mm OD
WES596-8-SCAM8x119 mmRoundStraight Cutaway
WES596-8-BESM8x122 mmRoundBell External ThreadSteel
WES596-6-F2LM6x119 mmRoundFlanged 2-Leg
WES596-6-ESM6x119 mmRoundExternal ThreadSteel
WES596-8-S2LM8x119 mmRound2-Leg
WES596-6-ENM6x119 mmRoundExternal ThreadNylon
WES596-8-IPM8x115 mmRoundInternal ThreadPhenolic
WES596-8-ESM8x119 mmRoundExternal ThreadSteel
WES596-6-IN-TFM6x115 mmTri-FlatInternal ThreadNylon
WES596-6-FCA-TFM6x119 mmTri-FlatFlanged Cutaway
WES596-8-FCA-QCM8x119 mmQuick ChangeFlanged Cutaway
WES596-8-BEN-TFM8x122 mmTri-FlatBell External ThreadNylon
WES596-8-BFM8x122 mmRoundBell Flanged
WES596-6-S3L-TFM6x119 mmTri-Flat3-Leg
WES596-8-BIN-QCM8x119 mmQuick ChangeBell Internal ThreadNylon
WES596-6-IP-TFM6x115 mmTri-FlatInternal ThreadPhenolic
WES596-6-S3LM6x119 mmRound3-Leg
WES596-8-BM8x122 mmRoundBell
WES596-8-BF-TFM8x122 mmTri-FlatBell Flanged
WES596-8-SBISM8x119 mmRoundSlotted Bell Internal ThreadSteel
WES596-8-SBIN-QCM8x119 mmQuick ChangeSlotted Bell Internal ThreadNylon
WES596-8-SIS-TFM8x115 mmTri-FlatSlotted Internal ThreadSteel
WES596-8-SBIN-TFM8x119 mmTri-FlatSlotted Bell Internal ThreadNylon
WES596-8-SBIS-TFM8x119 mmTri-FlatSlotted Bell Internal ThreadSteel
WES596-8-SM8x119 mmRoundStraight
WES596-8-SISM8x115 mmRoundSlotted Internal ThreadSteel
WES596-6-SBIP-TFM6x119 mmTri-FlatSlotted Bell Internal ThreadPhenolic
WES596-8-SIN-TFM8x115 mmTri-FlatSlotted Internal ThreadNylon
WES596-8-SIN-QCM8x115 mmQuick ChangeSlotted Internal ThreadNylon
WES596-8-SBINM8x119 mmRoundSlotted Bell Internal ThreadNylon
WES596-8-SINM8x115 mmRoundSlotted Internal ThreadNylon
WES596-8-SIS-QCM8x115 mmQuick ChangeSlotted Internal ThreadSteel
WES596-8-BF-QCM8x122 mmQuick ChangeBell Flanged
WES596-8-SIPM8x115 mmRoundSlotted Internal ThreadPhenolic
WES596-8-SIP-TFM8x115 mmTri-FlatSlotted Internal ThreadPhenolic
WES596-8-CM8x19.52 mmRoundClose Quarters
WES596-8-C-TFM8x19.52 mmTri-FlatClose Quarters
WES596-8-C-QCM8x19.52 mmQuick ChangeClose Quarters
WES596-8-SBIP-QCM8x119 mmQuick ChangeSlotted Bell Internal ThreadPhenolic
WES596-8-SBIPM8x119 mmRoundSlotted Bell Internal ThreadPhenolic
WES596-8-S-875M8x115.88 mmRoundStraight 22.22 mm OD
WES596-8-SIP-QCM8x115 mmQuick ChangeSlotted Internal ThreadPhenolic
WES596-8-S-875-TFM8x115.88 mmTri-FlatStraight 22.22 mm OD
WES596-8-SBIP-TFM8x119 mmTri-FlatSlotted Bell Internal ThreadPhenolic
WES596-8-S-875-QCM8x115.88 mmQuick ChangeStraight 22.22 mm OD
WES596-8-F-1125M8x119 mmRoundFlanged 28.58 mm OD
WES596-8-F-1125-TFM8x119 mmTri-FlatFlanged 28.58 mm OD
WES596-8-F-1125-QCM8x119 mmQuick ChangeFlanged 28.58 mm OD
WES596-6-BIN-QCM6x119 mmQuick ChangeBell Internal ThreadNylon
WES596-6-IPM6x115 mmRoundInternal ThreadPhenolic
WES596-6-BEPM6x122 mmRoundBell External ThreadPhenolic
WES596-6-BEN-TFM6x122 mmTri-FlatBell External ThreadNylon
WES596-6-S2L-QCM6x119 mmQuick Change2-Leg
WES596-8-BIN-TFM8x119 mmTri-FlatBell Internal ThreadNylon
WES596-8-BEP-QCM8x122 mmQuick ChangeBell External ThreadPhenolic
WES596-6-BIS-TFM6x119 mmTri-FlatBell Internal ThreadSteel
WES596-6-SCAM6x119 mmRoundStraight Cutaway
WES596-8-BES-TFM8x122 mmTri-FlatBell External ThreadSteel
WES596-8-BIPM8x119 mmRoundBell Internal ThreadPhenolic
WES596-8-BENM8x122 mmRoundBell External ThreadNylon
WES596-8-FCA-TFM8x119 mmTri-FlatFlanged Cutaway
WES596-6-SINM6x115 mmRoundSlotted Internal ThreadNylon
WES596-6-EP-QCM6x119 mmQuick ChangeExternal ThreadPhenolic
WES596-6-BISM6x119 mmRoundBell Internal ThreadSteel
WES596-6-S-QCM6x119 mmQuick ChangeStraight
WES596-6-IS-TFM6x115 mmTri-FlatInternal ThreadSteel
WES596-6-SM6x119 mmRoundStraight
WES596-8-BIP-TFM8x119 mmTri-FlatBell Internal ThreadPhenolic
WES596-8-EN-QCM8x119 mmQuick ChangeExternal ThreadNylon
WES596-8-F2L-QCM8x119 mmQuick ChangeFlanged 2-Leg
WES596-8-IS-TFM8x115 mmTri-FlatInternal ThreadSteel
WES596-8-ENM8x119 mmRoundExternal ThreadNylon
WES596-8-BIS-TFM8x119 mmTri-FlatBell Internal ThreadSteel
WES596-8-EP-QCM8x119 mmQuick ChangeExternal ThreadPhenolic
WES596-8-SCA-QCM8x119 mmQuick ChangeStraight Cutaway
WES596-8-BES-QCM8x122 mmQuick ChangeBell External ThreadSteel
WES596-6-SBIN-TFM6x119 mmTri-FlatSlotted Bell Internal ThreadNylon
WES596-6-SISM6x115 mmRoundSlotted Internal ThreadSteel
WES596-6-SIS-QCM6x115 mmQuick ChangeSlotted Internal ThreadSteel
WES596-6-SBISM6x119 mmRoundSlotted Bell Internal ThreadSteel
WES596-6-SBIS-TFM6x119 mmTri-FlatSlotted Bell Internal ThreadSteel
WES596-6-SIN-QCM6x115 mmQuick ChangeSlotted Internal ThreadNylon
WES596-6-SIS-TFM6x115 mmTri-FlatSlotted Internal ThreadSteel
WES596-6-IP-QCM6x115 mmQuick ChangeInternal ThreadPhenolic
WES596-8-SBIS-QCM8x119 mmQuick ChangeSlotted Bell Internal ThreadSteel
WES596-6-SBIPM6x119 mmRoundSlotted Bell Internal ThreadPhenolic
WES596-8-FHM8x119 mmRoundFlanged High
WES596-6-FCA-QCM6x119 mmQuick ChangeFlanged Cutaway
WES596-6-BEP-TFM6x122 mmTri-FlatBell External ThreadPhenolic
WES596-8-S-TFM8x119 mmTri-FlatStraight
WES596-6-SBINM6x119 mmRoundSlotted Bell Internal ThreadNylon
WES596-8-IS-QCM8x115 mmQuick ChangeInternal ThreadSteel
WES596-6-EPM6x119 mmRoundExternal ThreadPhenolic
WES596-6-BIP-TFM6x119 mmTri-FlatBell Internal ThreadPhenolic
WES596-8-ISM8x115 mmRoundInternal ThreadSteel
WES596-6-BINM6x119 mmRoundBell Internal ThreadNylon
WES596-6-IN-QCM6x115 mmQuick ChangeInternal ThreadNylon
WES596-6-SIN-TFM6x115 mmTri-FlatSlotted Internal ThreadNylon
WES596-8-BEPM8x122 mmRoundBell External ThreadPhenolic
WES596-8-BIP-QCM8x119 mmQuick ChangeBell Internal ThreadPhenolic
WES596-8-BEN-QCM8x122 mmQuick ChangeBell External ThreadNylon
WES596-6-EP-TFM6x119 mmTri-FlatExternal ThreadPhenolic
WES596-6-INM6x115 mmRoundInternal ThreadNylon
WES596-6-BES-TFM6x122 mmTri-FlatBell External ThreadSteel
WES596-6-BIPM6x119 mmRoundBell Internal ThreadPhenolic

Switching from another manufacturer?

We’re here to help.

Our cross reference tool is the easiest way to find an equivalent or alternate part. If it’s not on our list, we’ll still be able to help you switch, perhaps even design a custom tool to your specification. Send us an email or give us call!

SAME DAY SHIPPING

Don't let delayed shipments hold up your assembly line.

We frequently restock our most popular items. Most of our standard microstops are in stock. All our online orders are fullfilled out of Houston, Texas facility and ships same day on in-stock orders placed before 12 PM CST.

Order online

© Wescon Industries Inc. 2025601 Century Plaza Dr. Houston, TX 77073Our products are 100% designed and manufactured in our facilities in California and Texas.
ContactPrivacy PolicyTerms & Conditions
